The next BIG thing in mass production
Information
Overview
Specifications
Specifications-Basic Specs
PrintingMethod
Digital direct to garment printing
MachineSize
186cm x 206cm x 146cm (Platen unloading)
MachineWeight
approx. 640kg (Platen included)
PlatenSizes
Maximum Print Size is 24“ x 24“ / 61.0cm x 61.0 cm
IncludedPlatenSize
14” x 16” (35,6cm x 40,6cm)
InkType

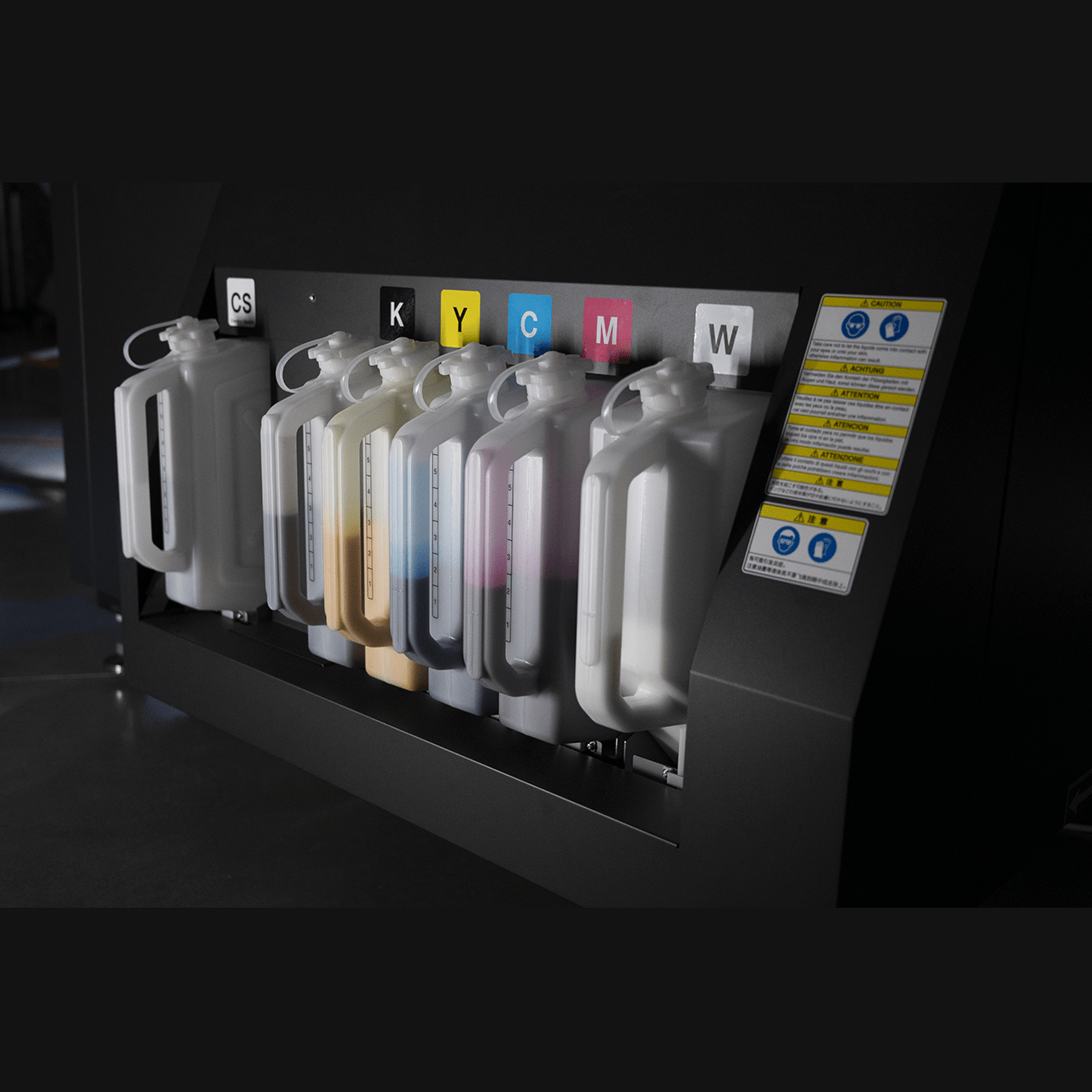

Water-based innobella inks
InkHeadType

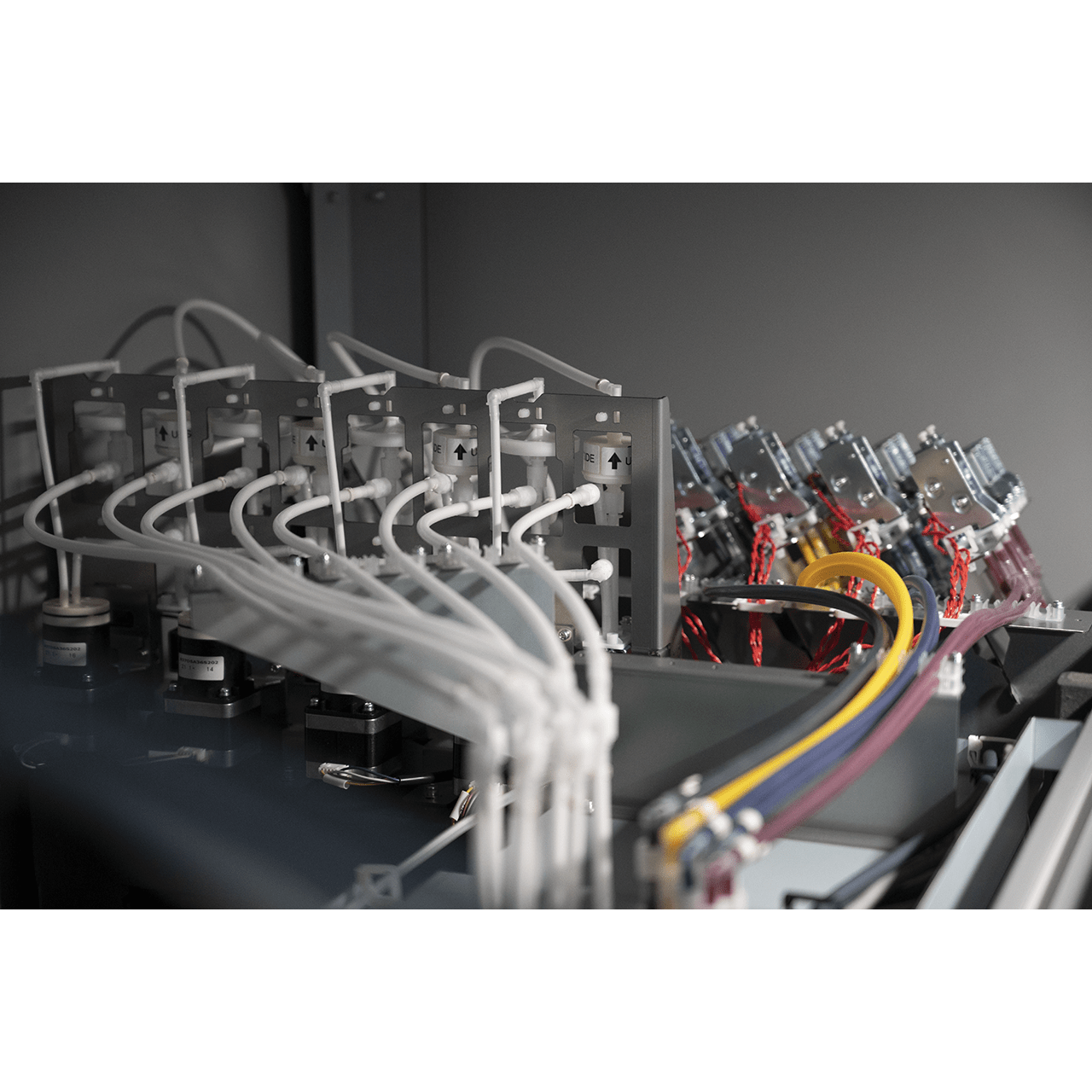

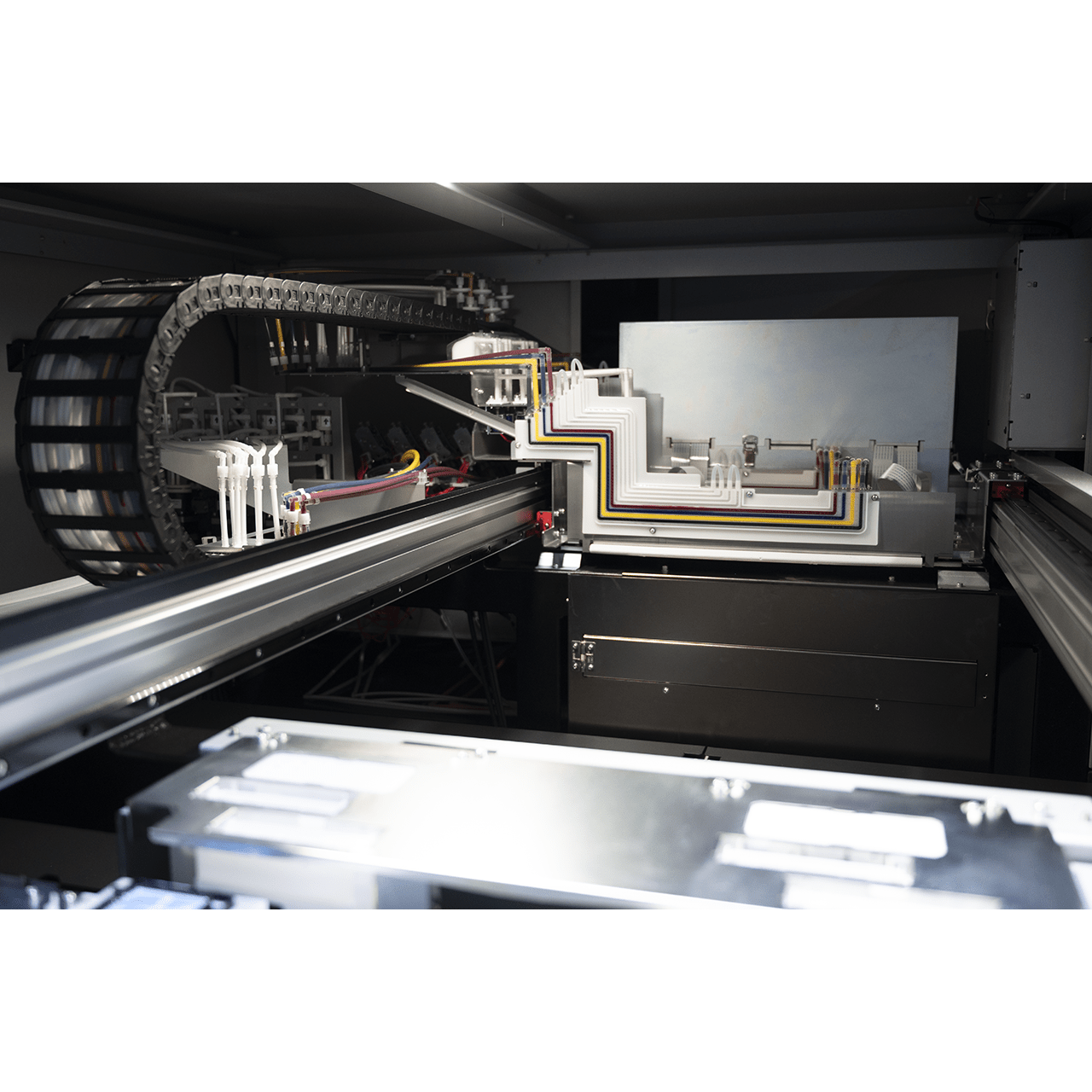

On demand piezo head with fan inside
NumberOfInkHeads
4 print heads / 16 ink channels
PrintResolution
Maximum 1200dpi x 1200dpi
PrintMode
Single or double for CMYK. Underbase and highlight for white.
DataOutput
Printer driver (USB, File output, LAN)
PowerSupply
AC 200V-240V (±10%), 50/60Hz(± 1Hz)
PowerConsumption
5A (average) (Reference: 2A during printing)
InkCure
Heat press machine can be used at 180°C (356°F) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 160°C (320°F) for three and a half minutes. Time and temperature may vary depending on which manufacturer‘s dryer is used.
PreTreatment
Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer‘s instructions. Pre-treatment is necessary for white ink.
Specifications-Software
SupportedOS
macOS 10.15 Catalina, macOS 11.0 BigSur, Windows 10 (64bit)
Interface
LAN, USB Function, USB Host
DriverOperatingConditions
2GHz CPU (minimum recommendation) 8GB RAM (minimum recommendation)
DisplayResolution
SXGA(1280×1024) (minimum recommendation)
RecommendedApplications
Adobe® Photoshop CC, Adobe® Illustrator CC, CorelDRAW® 2020/2021(Windows)
