More Colors More Vibrancy
Extra Colors for more vibrant results
Our GTX600 Extra Colors contains two extra tanks and print heads to achieve an
even better color result in the orange and green range.
Engineered for leading performance
User experience is becoming more important than ever, a machine should not
only function perfectly but also be able to adapt to the needs of its user.
Built for industrial-level performance
Processing mass volumes of printed garments requires equipment that can meet the
dual challenges of high quality design reproduction and industrial level activity.

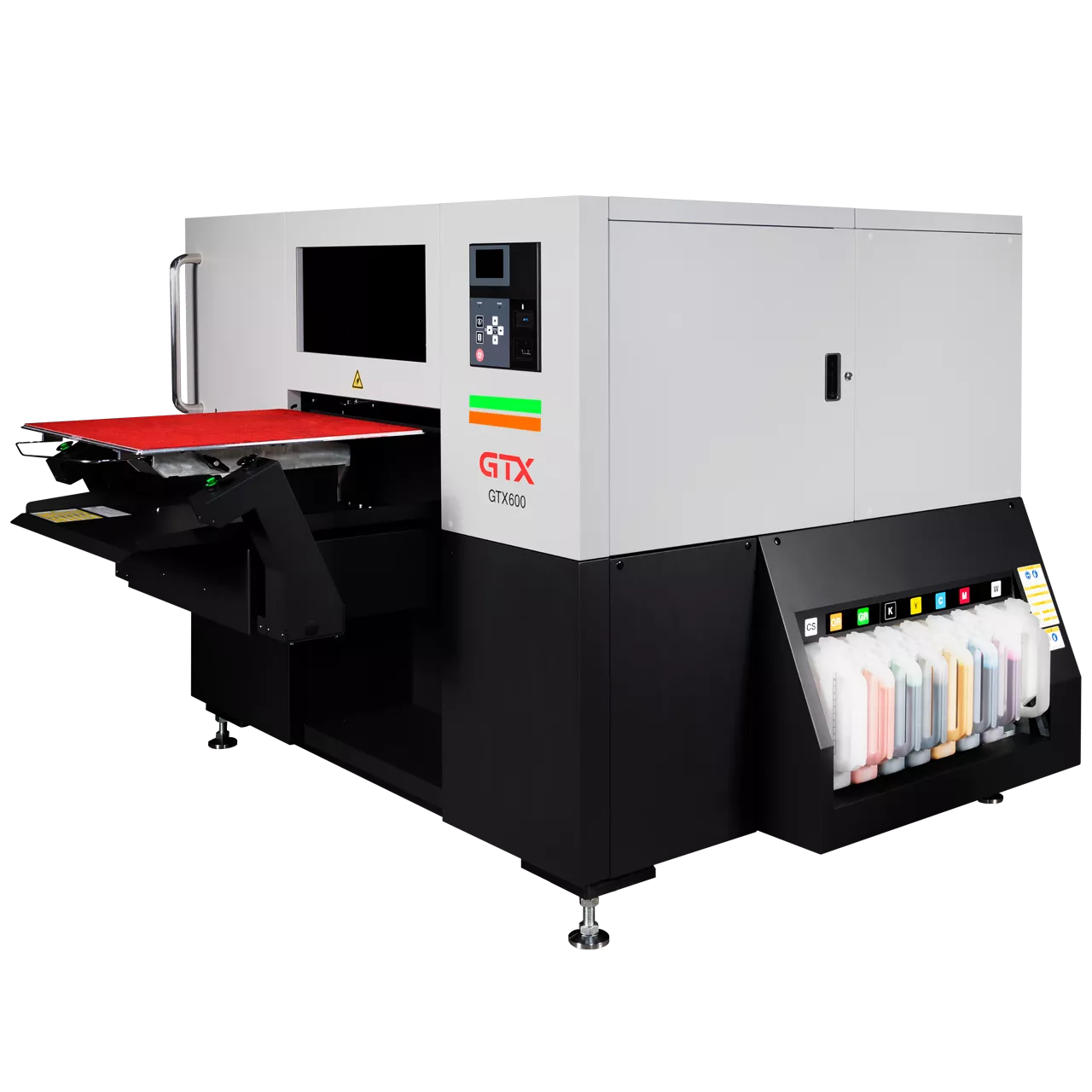

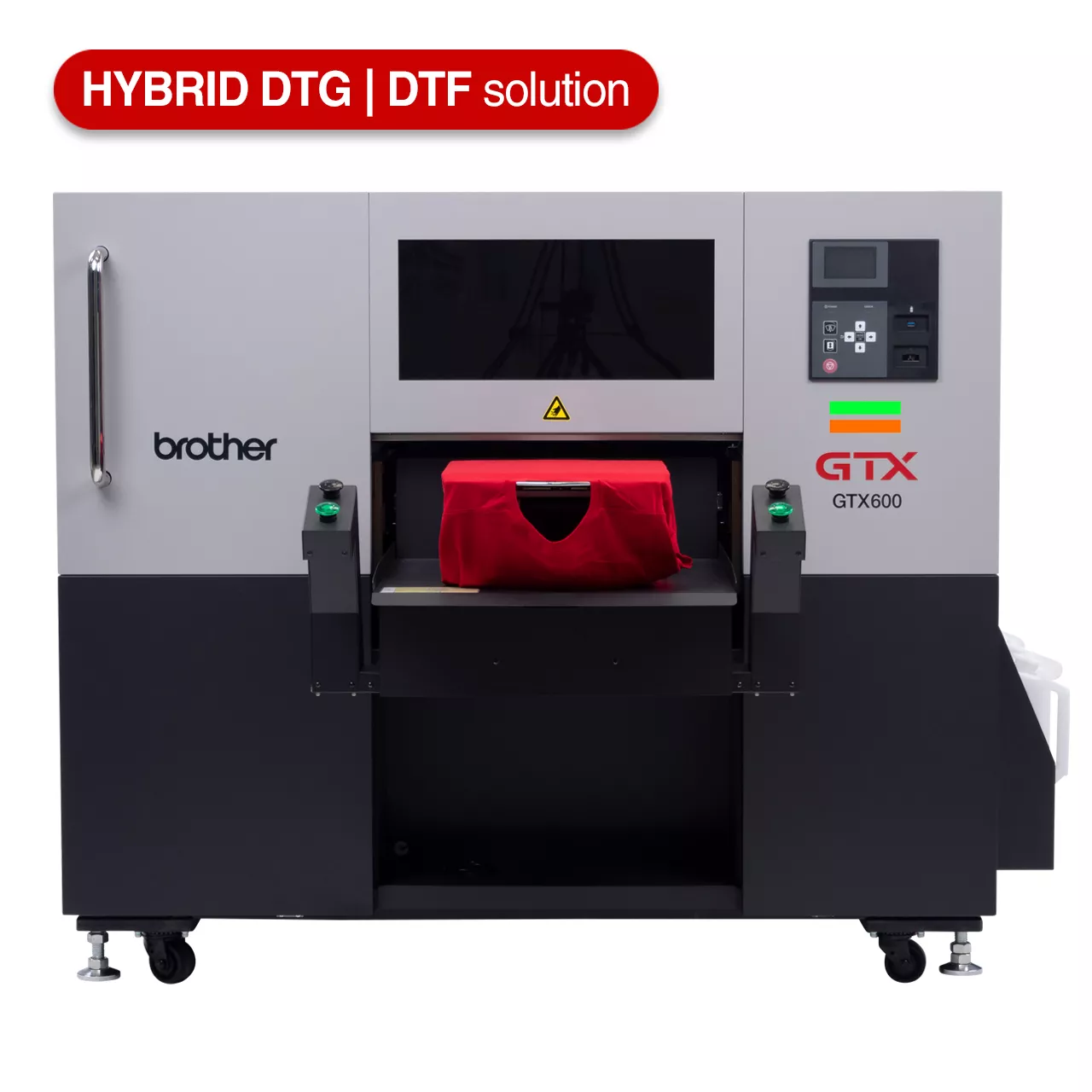

For this purpose we want to introduce the GTX600 & GTX600 Extra Colors to you,
the newest GTX ensures a smooth, highly professional and unique workflow with its
many advantages and should therefore be the new member of you company.
At your side for a better future
Environmental friendliness and sustainability are important issues in many
areas. We at Brother want to do our part by offering solutions that limit the
environmental impact and therefore create a better tomorrow for everyone.
Additional Software:
Myze supports Brother direct to garment printers with DTG, DTF and Embroidery. Producing more efficiently, creating your own products quickly, and maintaining a clear overview of all key figures can be achieved with streamlined processes and innovative tools designed for optimal productivity.
Click here for further information.
Information
Acerca de
Extra Colors for more vibrant results
for a wider color garmut
More color depth
for even more detailed results
Larger color spectrum
possible to ensure the best possible color dynamics

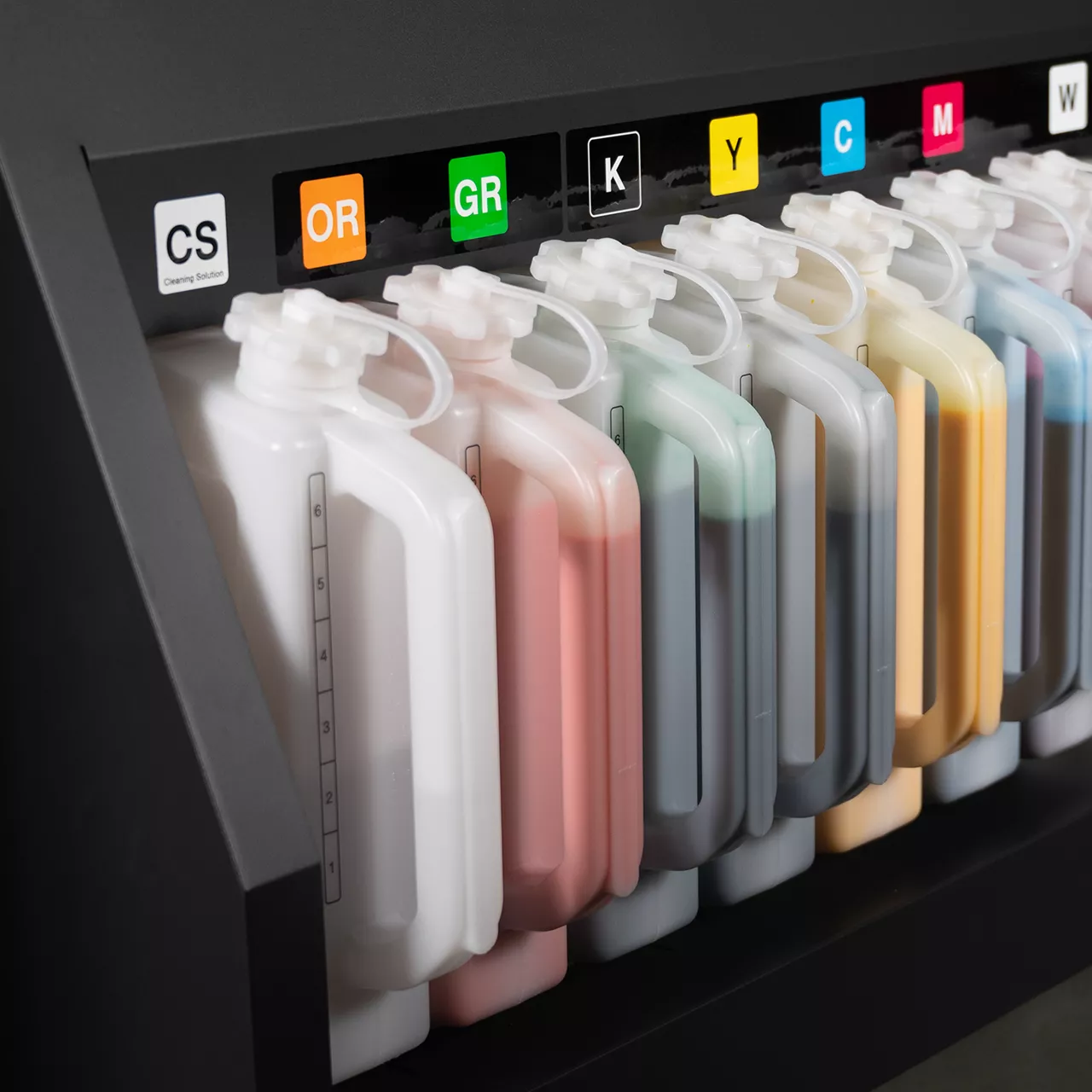

Two extra
tanks for orange and green
Two extra
printheads for orange and green
Especficaciones
Informaciones técnicas básicas
Método de impresión
Impresión digital directa sobre prenda
Tamaño de la máquina
187cm x 192cm x 146cm (Platen loading) 187cm x 206cm x 146cm (Platen unloading)
Peso de la máquina
approx. 680kg (Platen included)
Tamaño del plato
Maximum Print Size is 61.0cm x 61.0 cm / 24“ x 24“
Tamaño del plato incluyido
35,6cm x 40,6cm / 14“ x 16“
Tipo de tinta
Tintas innobella a base de agua
Tipo de cabezal de impresión
On demand piezo head with internal fan
Número de cabezales de impresión
6 print heads
Resolución de impresión
Maximum 1200dpi x 1200dpi
Modo de impresión
Single or double for CMYK. Orange and green added for extra colors. Underbase and highlight for white
Salida de datos
Printer driver (USB, File output, LAN)
Fuente de alimentación
AC 200V-240V (±10%), 50/60Hz(± 1Hz)
Consumo de energía
5A (maximum) (Reference: 2A during printing)
Fijación de la impresión
Heat press machine can be used at 180°C (356°F) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 160°C (320°F) for three and a half minutes. Time and temperature may vary depending on which manufacturer‘s dryer is used.
Pretratamiento
Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer‘s instructions. Pre-treatment is necessary for white ink.
Software
OS
PC- Windows 10 (64-bit) and Windows 11 (64-bit) Mac - macOS® Big Sur to macOS® Ventura
Interfaz
LAN, USB Function, USB Host
Condiciones operativas del driver
2GHz CPU (minimum recommendation) 8GB RAM (minimum recommendation)
Resolución de la pantalla
SXGA(1280×1024) (minimum recommendation)
Aplicaciones recomendadas
Adobe® Photoshop CC Adobe® Illustrator CC CorelDRAW® 2021/2022(Windows)
