More Colors More Vibrancy
Extra Colors for more vibrant results

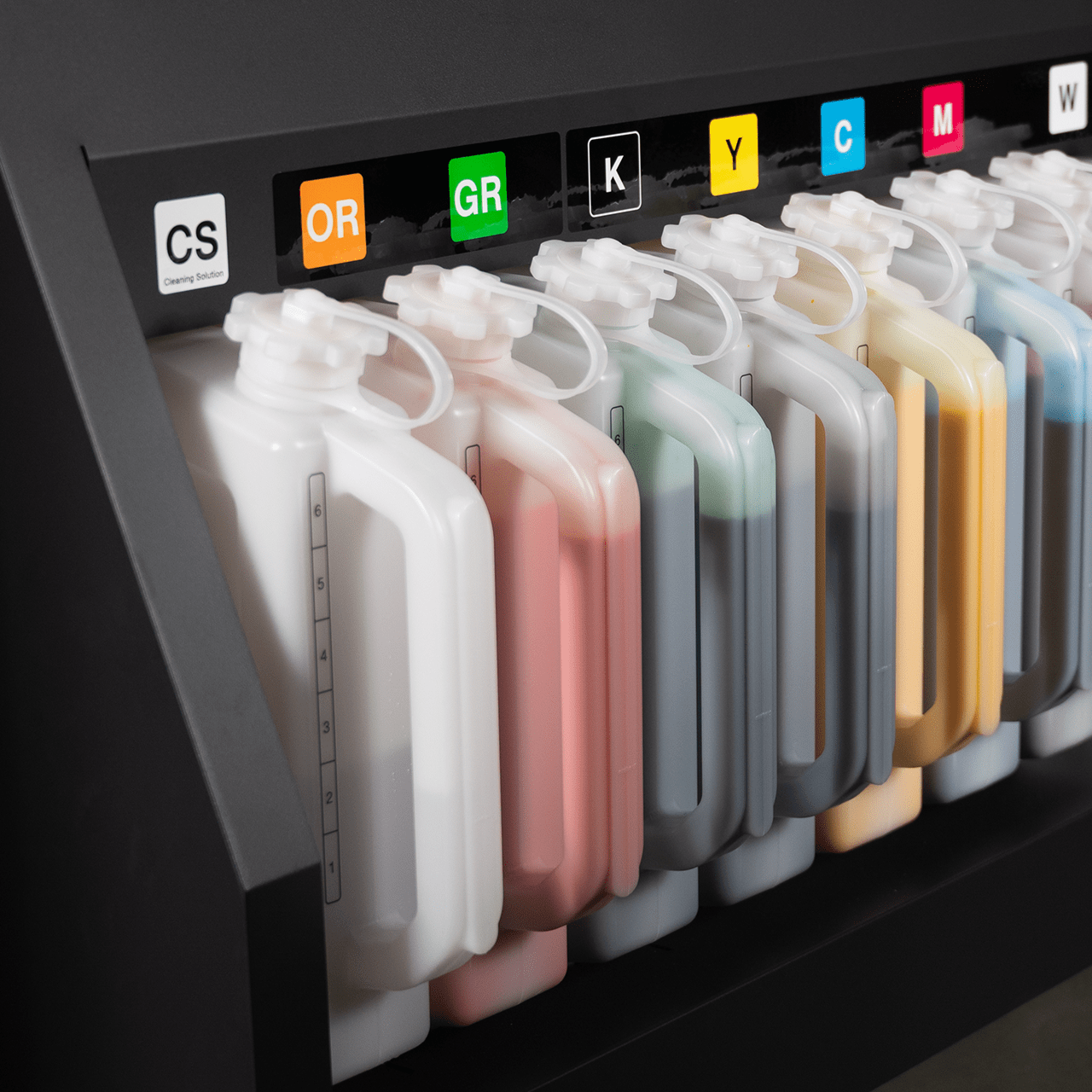

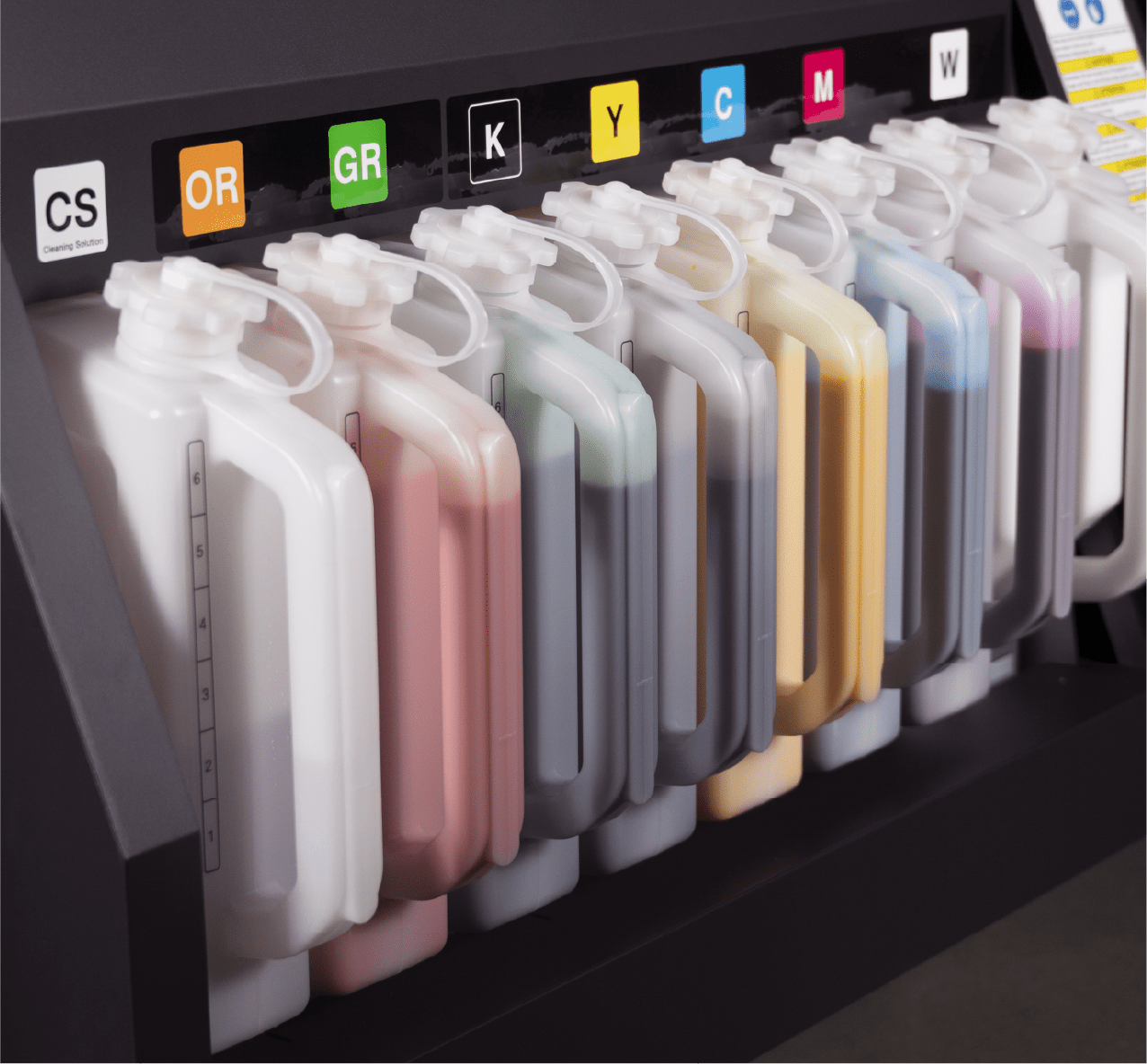

Our GTX600 Extra Colors contains two extra tanks and print heads to achieve an
even better color result in the orange and green range.
Engineered for leading performance
User experience is becoming more important than ever, a machine should not
only function perfectly but also be able to adapt to the needs of its user.
Built for industrial-level performance
Processing mass volumes of printed garments requires equipment that can meet the
dual challenges of high quality design reproduction and industrial level activity.

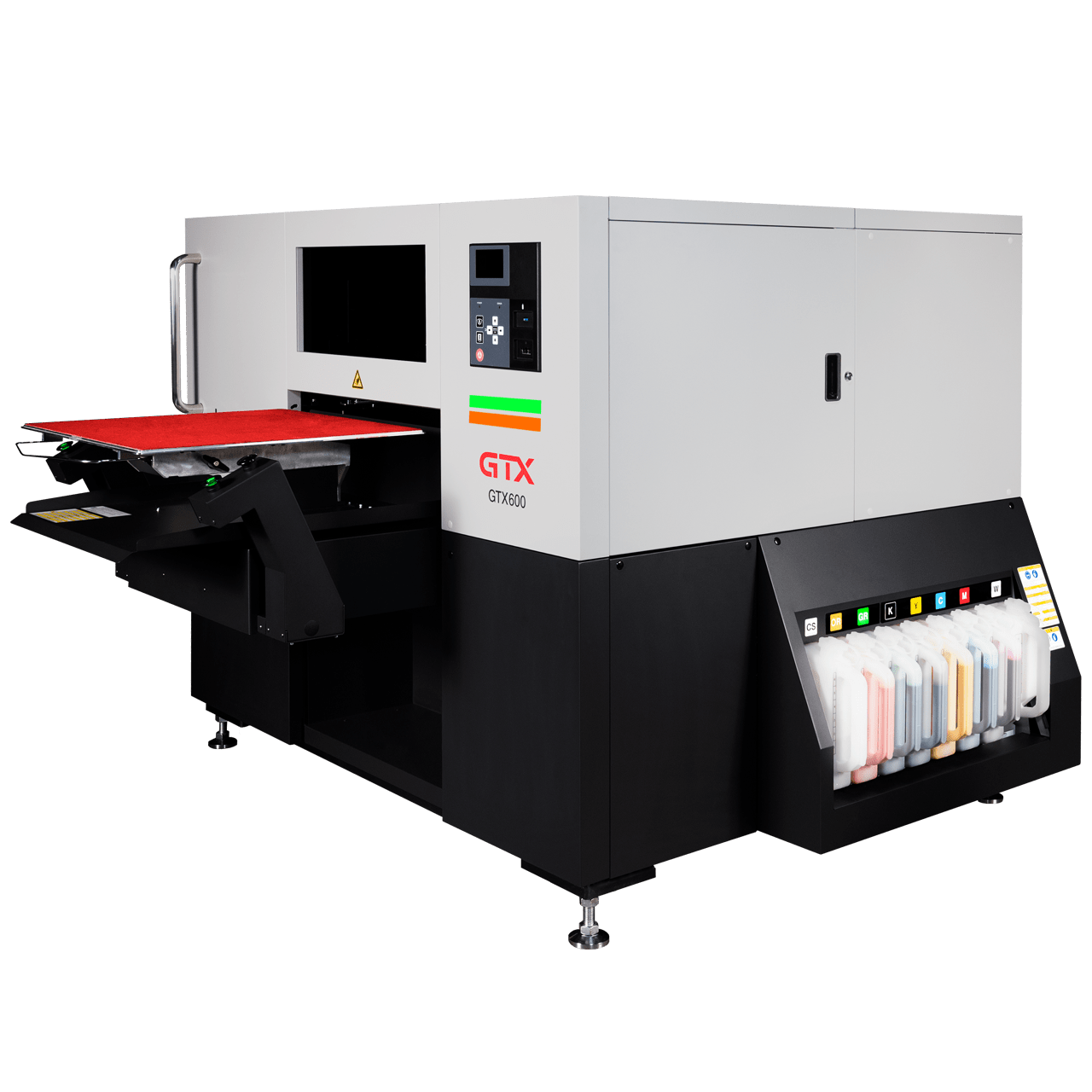

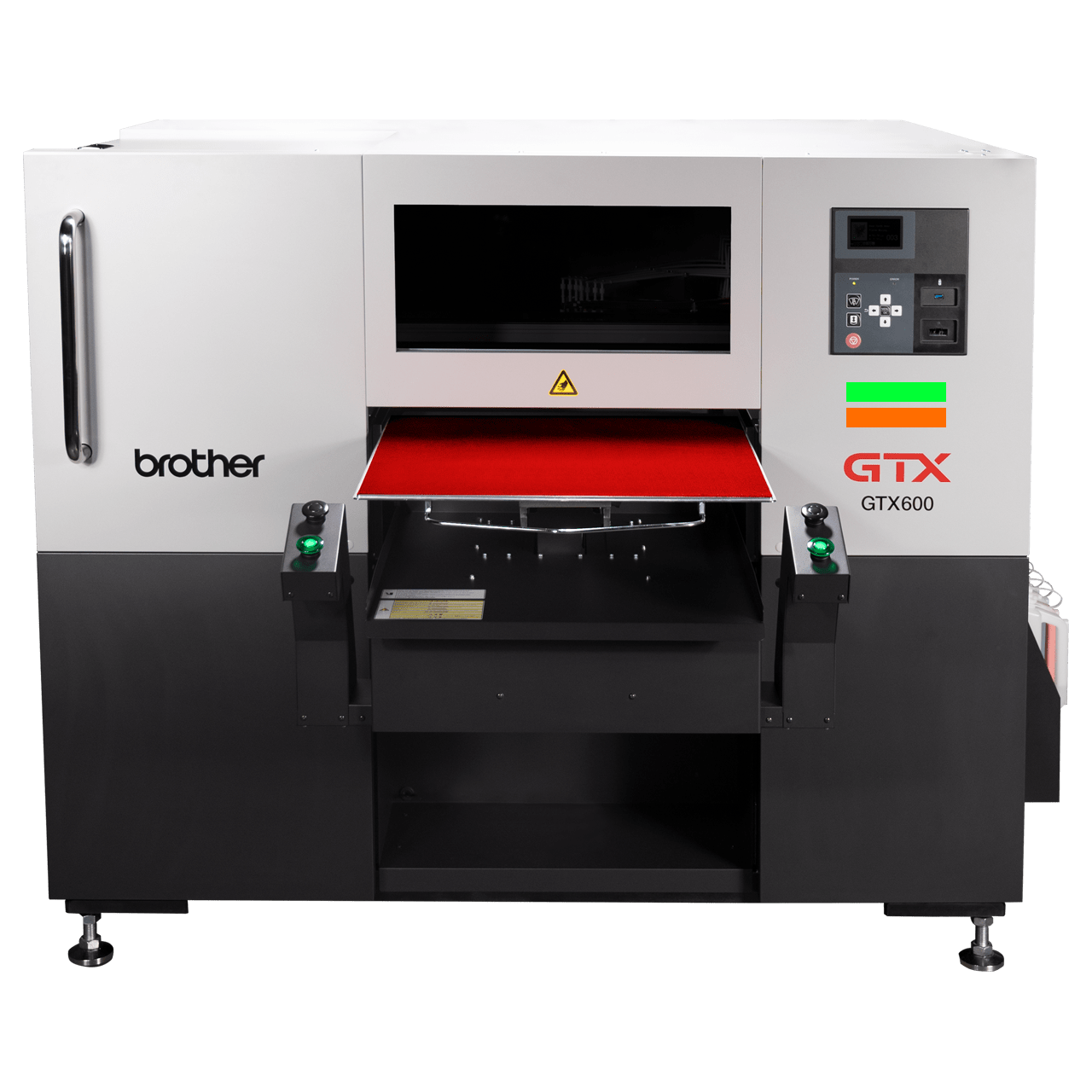

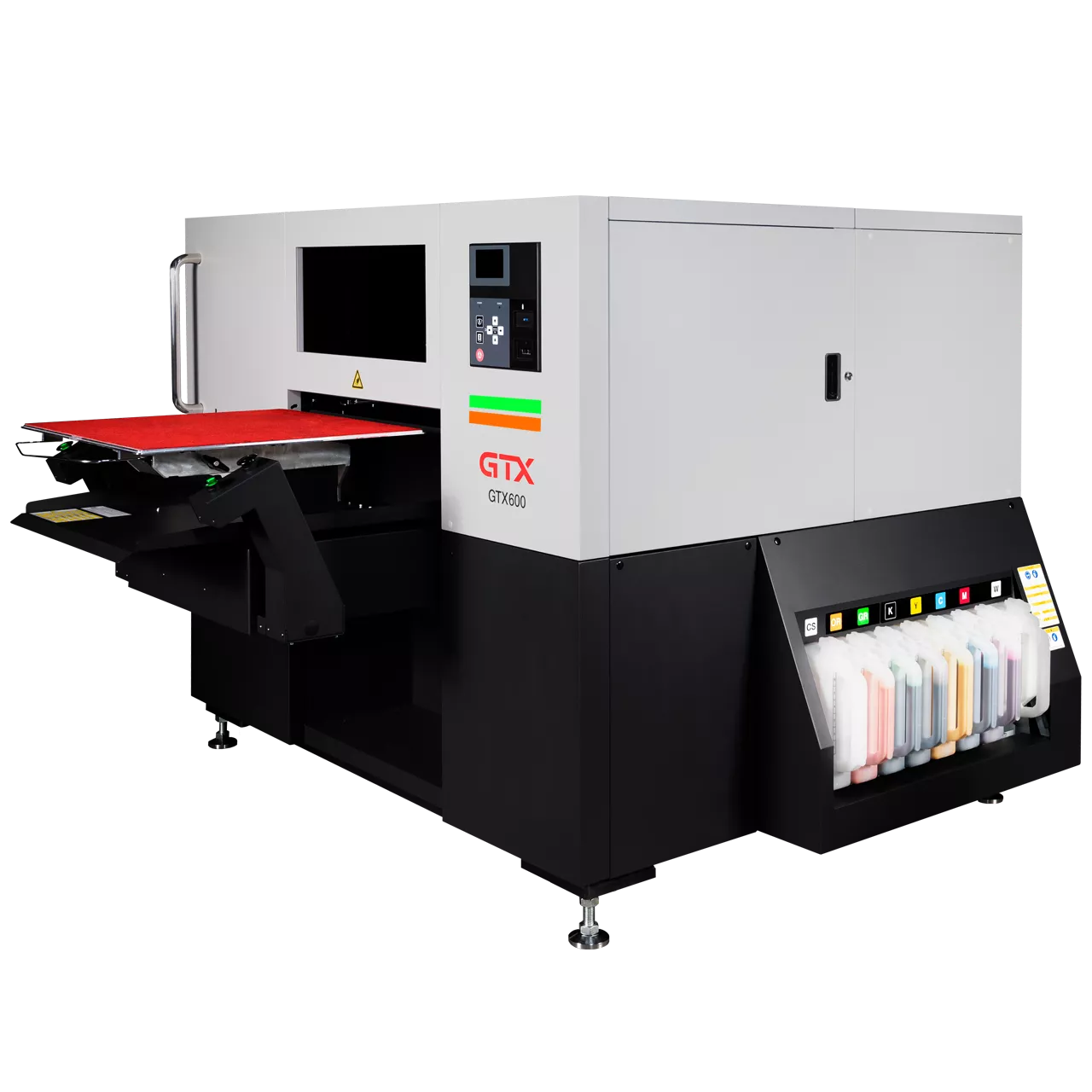

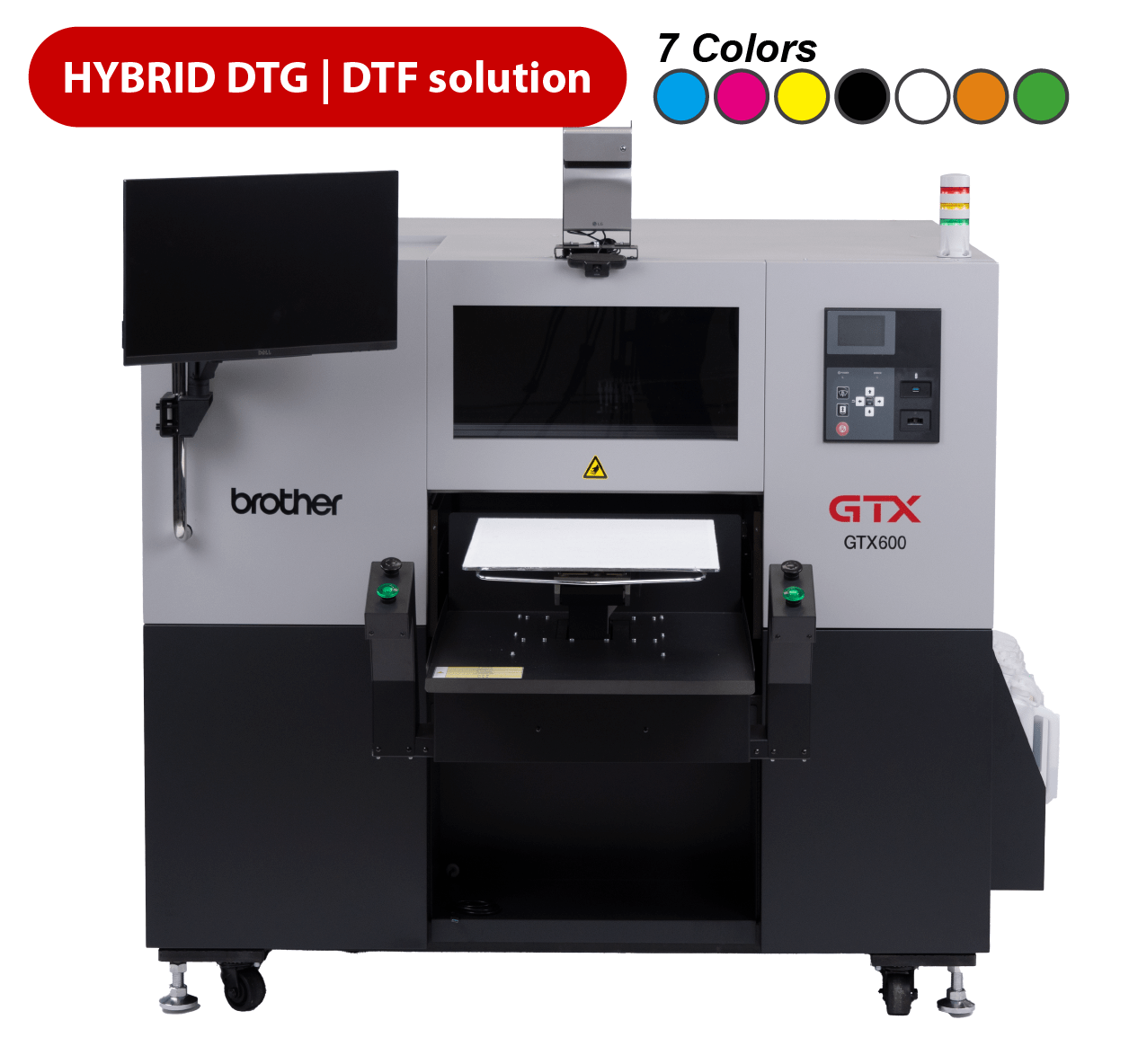

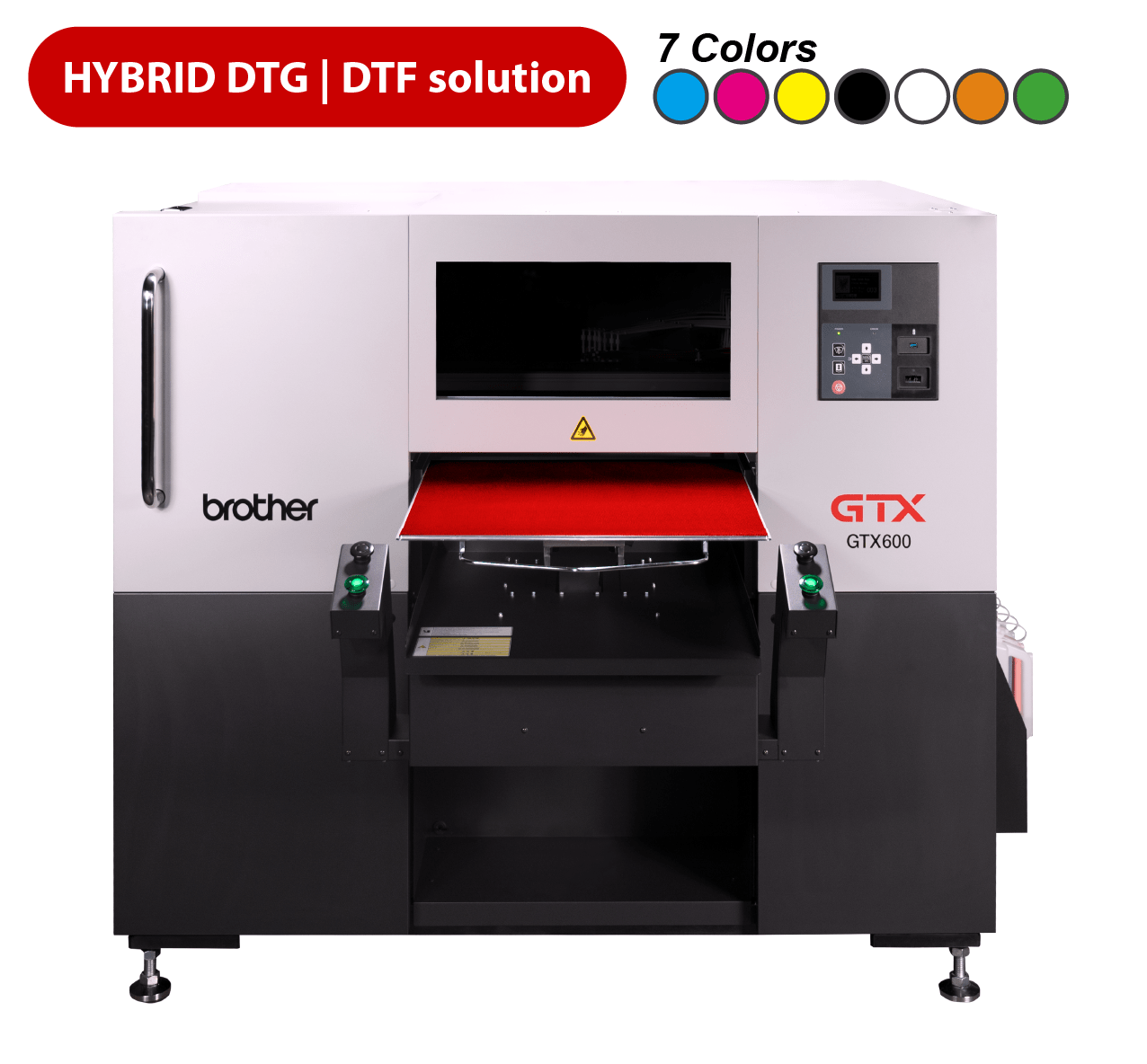

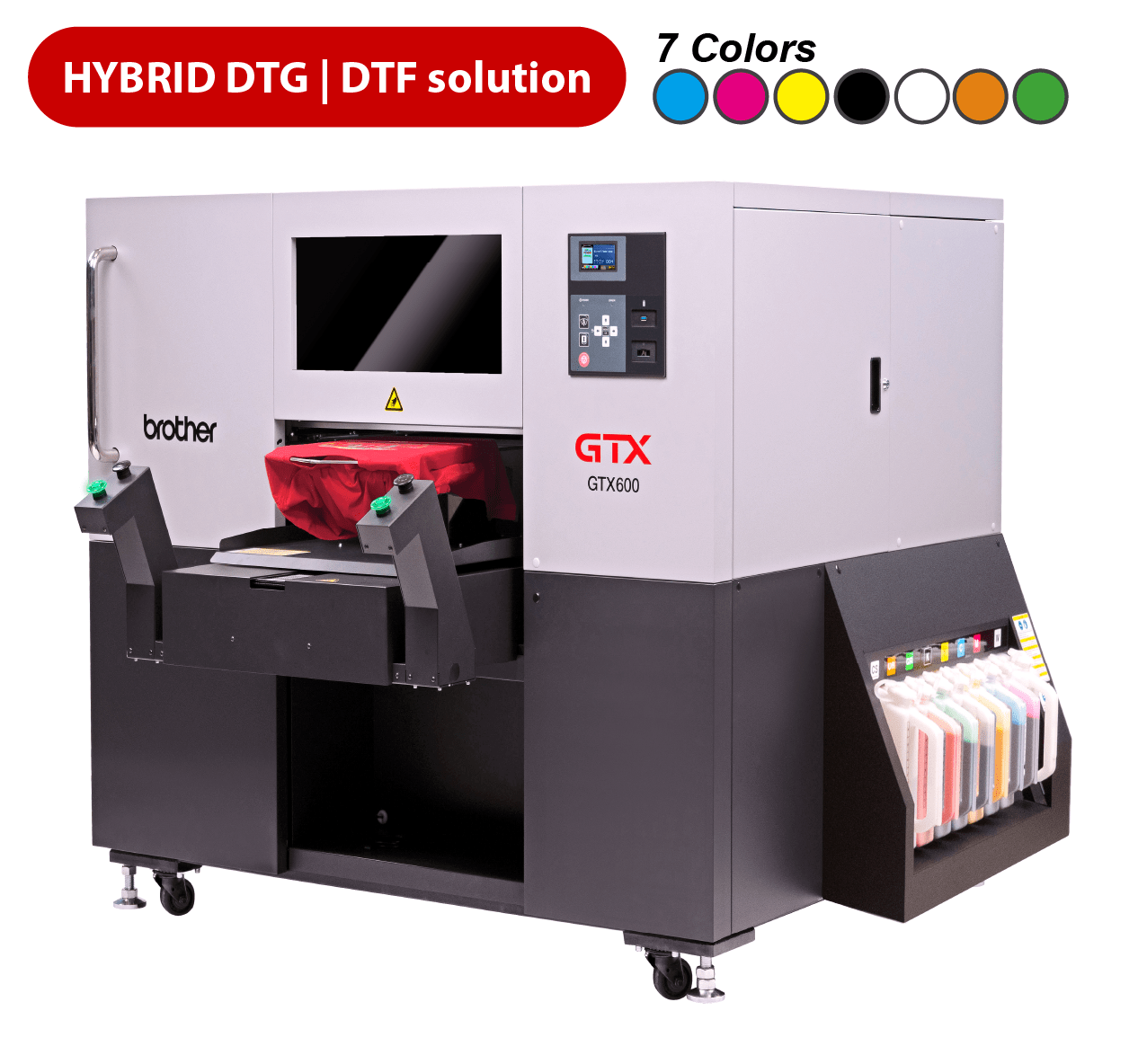

For this purpose we want to introduce the GTX600 & GTX600 Extra Colors to you,
the newest GTX ensures a smooth, highly professional and unique workflow with its
many advantages and should therefore be the new member of you company.
At your side for a better future
Environmental friendliness and sustainability are important issues in many
areas. We at Brother want to do our part by offering solutions that limit the
environmental impact and therefore create a better tomorrow for everyone.
Thông Tin
Tổng Quan
Các Thông Số Kĩ Thuật
Thông số Cơ bản
Phương pháp In
Digital direct to garment printing
Kích thước Máy
187cm x 192cm x 146cm (Platen loading) 187cm x 206cm x 146cm (Platen unloading)
Trọng lượng Máy
approx. 680kg (Platen included)
Kích thước Giấy ép
Maximum Print Size is 61.0cm x 61.0 cm / 24“ x 24“
Kích thước Giấy ép Bao gồm
35,6cm x 40,6cm / 14“ x 16“
Loại Mực
Water-based innobella inks
Loại đầu Mực
On demand piezo head with internal fan
Số đầu Mực
6 print heads
Độ Phân giải In
Maximum 1200dpi x 1200dpi
Chế độ In
Single or double for CMYK. Orange and green added for extra colors. Underbase and highlight for white
Đầu ra Dữ liệu
Printer driver (USB, File output, LAN)
Nguồn cấp
AC 200V-240V (±10%), 50/60Hz(± 1Hz)
Tiêu thụ Năng lượng
5A (maximum) (Reference: 2A during printing)
Bảo quản Mực
Heat press machine can be used at 180°C (356°F) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 160°C (320°F) for three and a half minutes. Time and temperature may vary depending on which manufacturer‘s dryer is used.
Xử lý trước
Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer‘s instructions. Pre-treatment is necessary for white ink.
Phần mềm
Hệ điều hành
PC- Windows 10 (64-bit) and Windows 11 (64-bit) Mac - macOS® Big Sur to macOS® Ventura
Giao diện
LAN, USB Function, USB Host
Điều kiện hoạt động của Trình điều khiển
2GHz CPU (minimum recommendation) 8GB RAM (minimum recommendation)
Độ phân giải Màn hình
SXGA(1280×1024) (minimum recommendation)
Các Ứng dụng được Đề xuất
Adobe® Photoshop CC Adobe® Illustrator CC CorelDRAW® 2021/2022(Windows)
