高產能 DTG 打印機,配備大容量供墨系統、自動保養及持續墨水循環功能,滿足專業服裝生產需求。

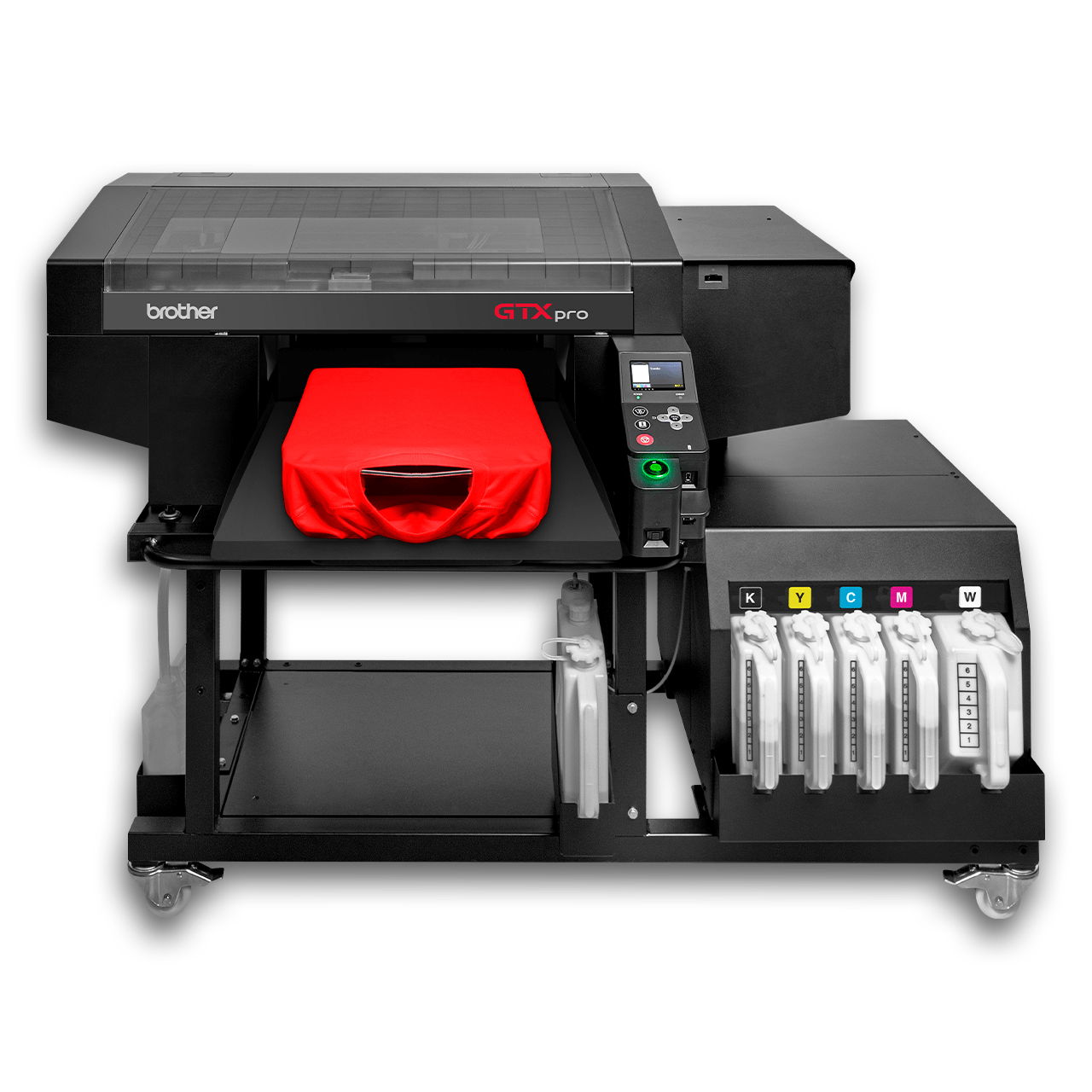

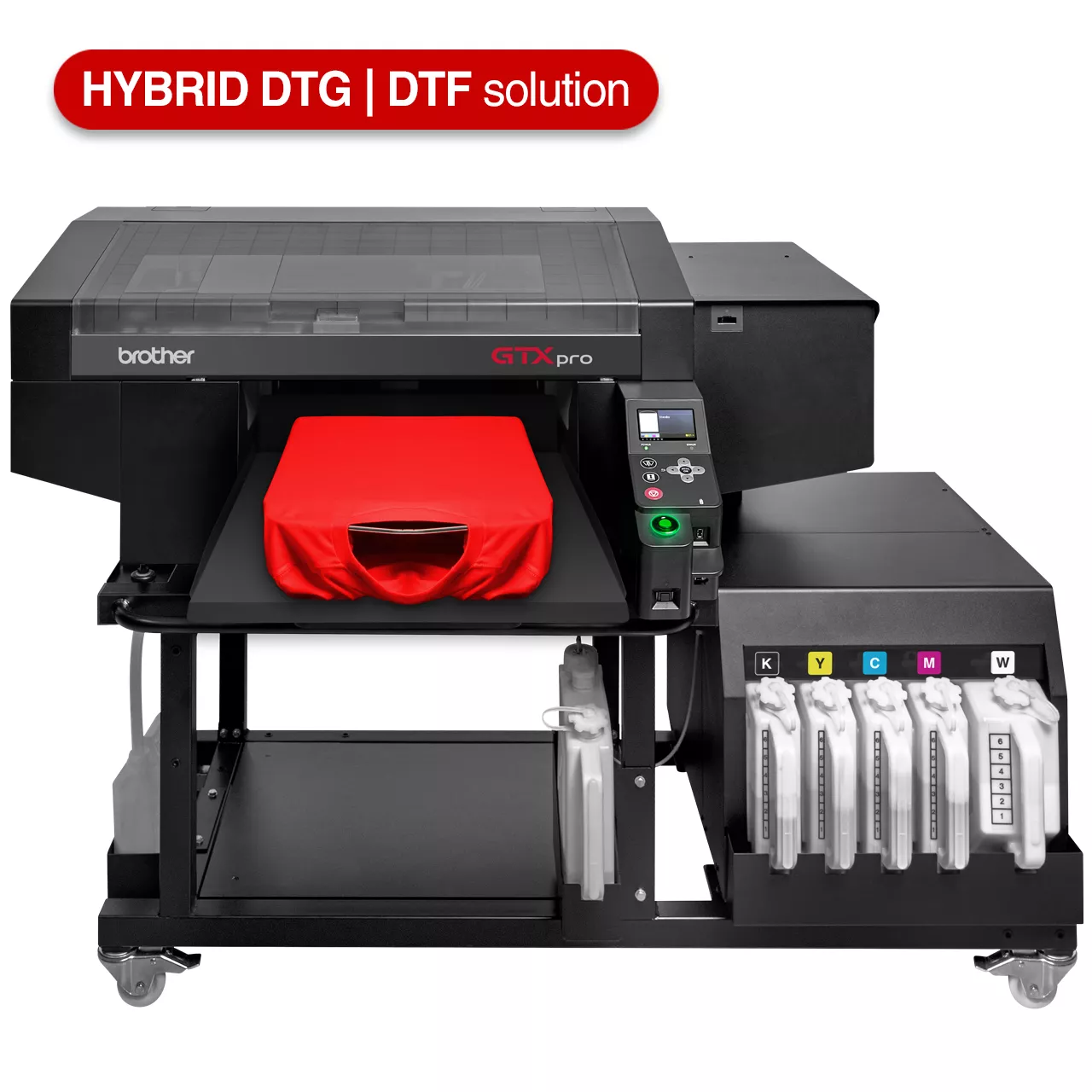

Brother GTXpro Bulk 數碼服裝打印機(GTX-424)是高產能服裝直噴打印機,專為要求速度、穩定性及擴充能力的生產環境而設。設備採用先進大容量供墨系統、持續墨水循環技術、自動保養功能及高速打印模式,協助服裝印製業者提升生產力,並在多種服裝上呈現鮮明、專業的打印品質。
資訊
概述
基本規格
規格
印刷方式
Digital direct to garment printing
機器呎吋
1780mm x 1300mm x 1210mm (with recommended stand)
機器重量
Approx. 165kg
台板呎吋
Maximum Print Size is 40,6cm x 53,3cm / 16” x 21”
標配台板呎吋
14” x 16” (35,6cm x 40,6cm)
墨水類型
Water-based innobella inks
打印頭類型
Brother On demand piezo head
打印頭數量
2 print heads / 8 ink channels
打印範圍
1200 dpi x 1200 dpi
打印模式
Single or double for CMYK. Underbase and highlight for white.
數據輸出
Printer driver (USB, File output)
電源
AC 100V-240V, 50/60Hz ± 1Hz
功耗
0.8A(average) (Reference: 0.3A - during circulation)
定影條件
Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320° (160°) for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used.
前處理
Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink.
操作系統
OS
Windows® 7(32 bit/64 bit), Windows 8.1(32 bit/64 bit), Windows 10(32 bit/64 bit), Mac OS® X v10.11.x
接口
USB2.0, LAN(10 BASE-T, 100 BASE-TX), USB Flash Memory(Under 32GB, FAT32 format)
驅動器進行條件
2GHz CPU (minimum recommendation) 4GB RAM
顯示分辦率
XGA(1024x768) (minimum recommendation)
推薦應用程序
Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC, CorelDRAW® 2018/2019 (Windows)
