More Colors More Vibrancy
Extra Colors for more vibrant results

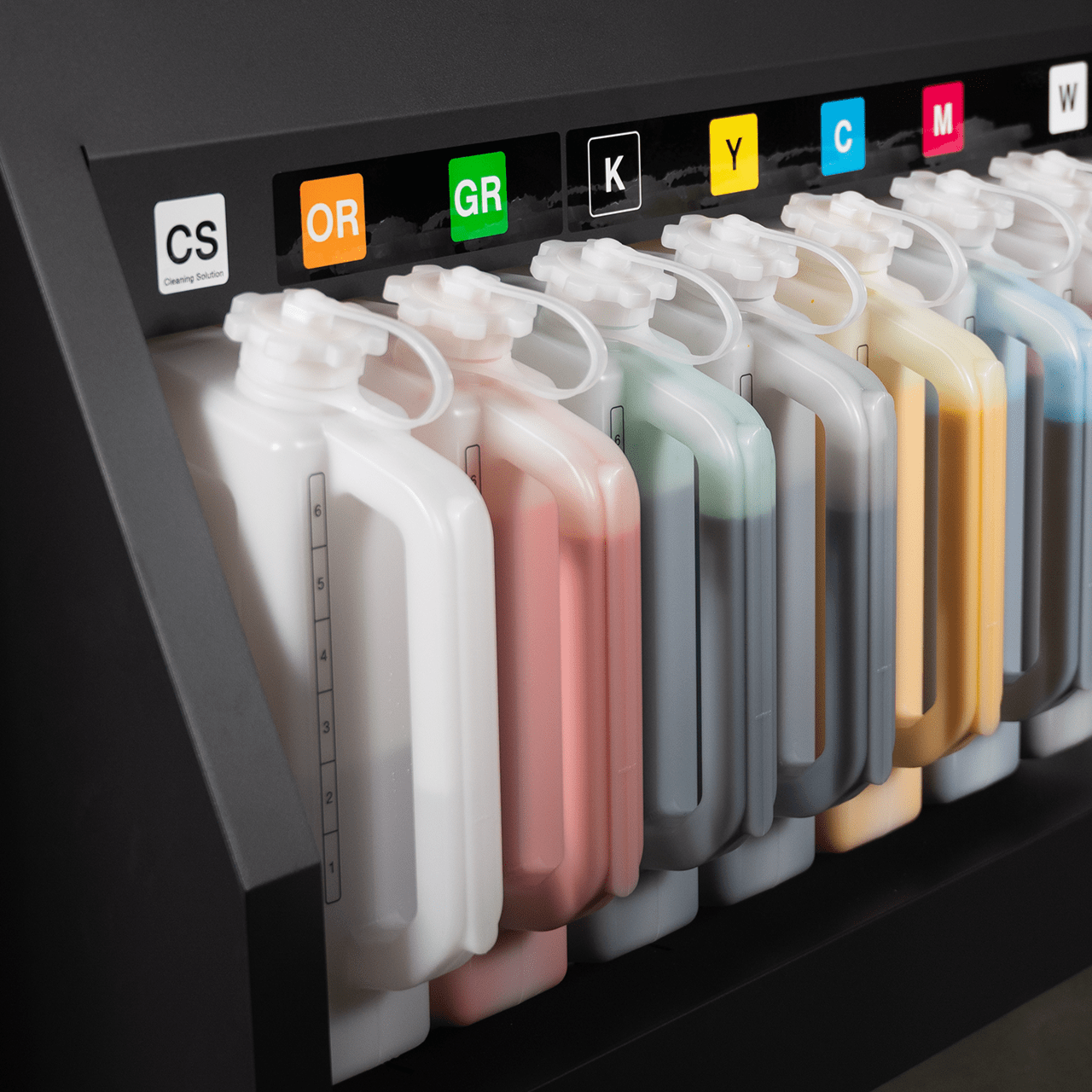

Our GTX600 Extra Colors contains two extra tanks and print heads to achieve an
even better color result in the orange and green range.
Engineered for leading performance
User experience is becoming more important than ever, a machine should not
only function perfectly but also be able to adapt to the needs of its user.
Built for industrial-level performance
Processing mass volumes of printed garments requires equipment that can meet the
dual challenges of high quality design reproduction and industrial level activity.

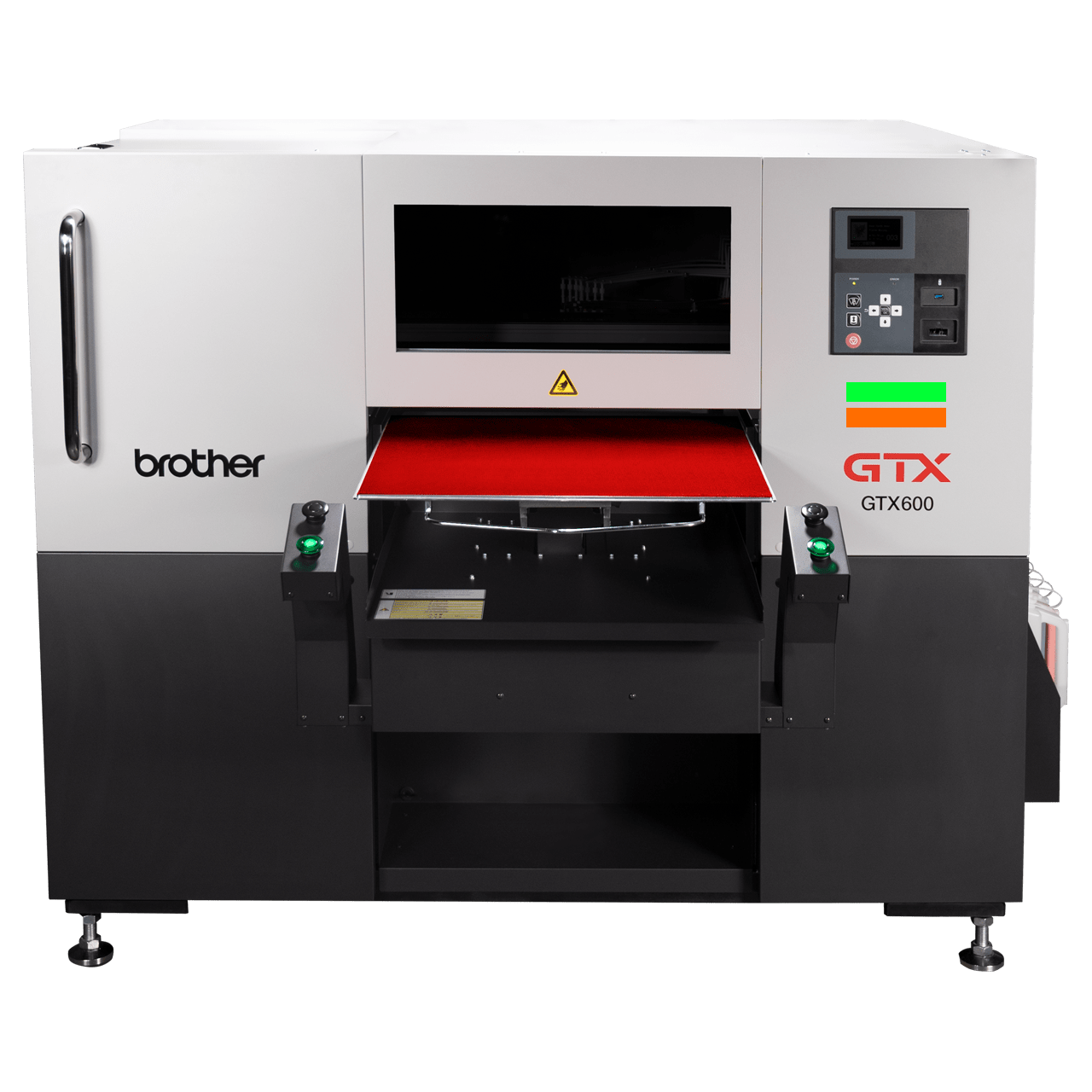

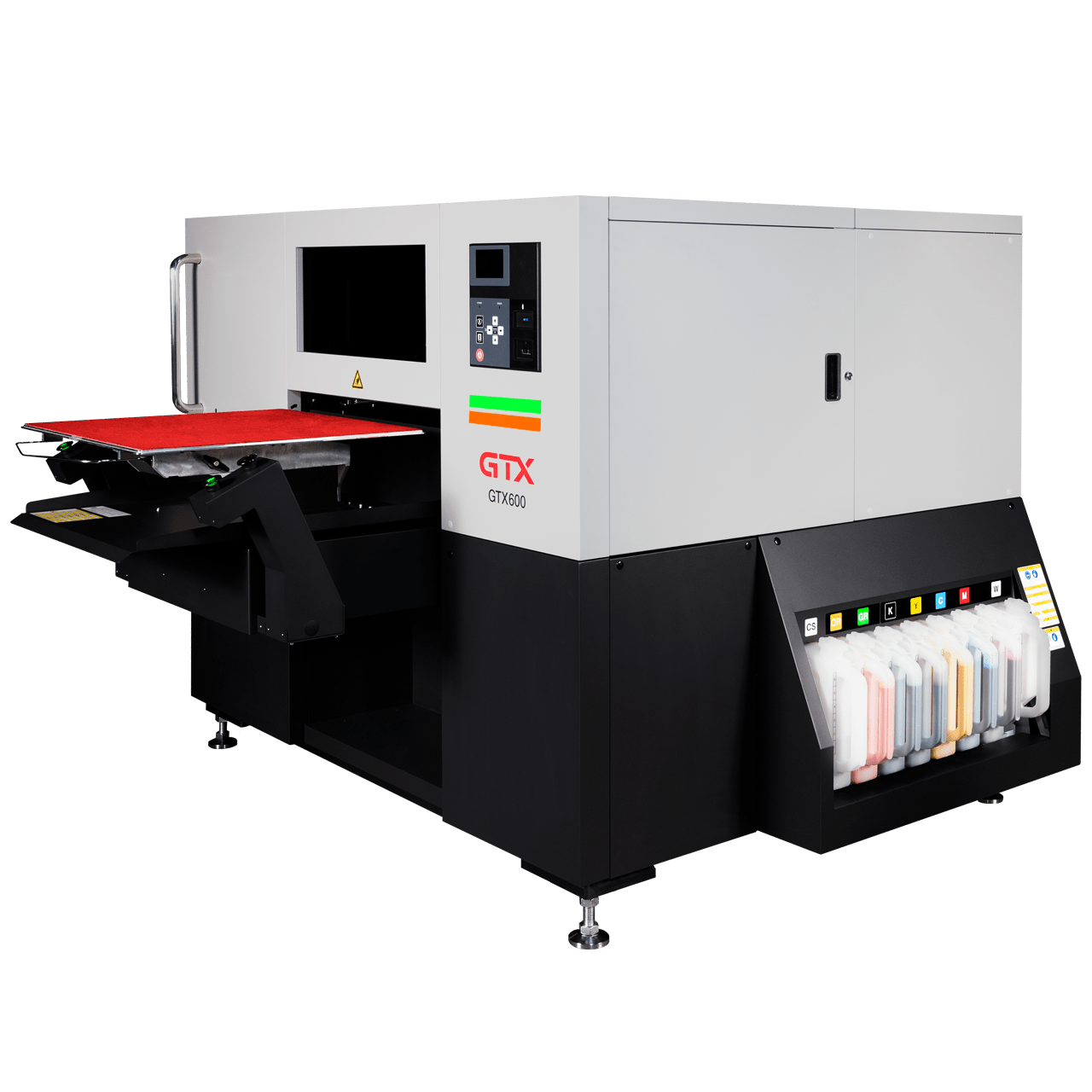

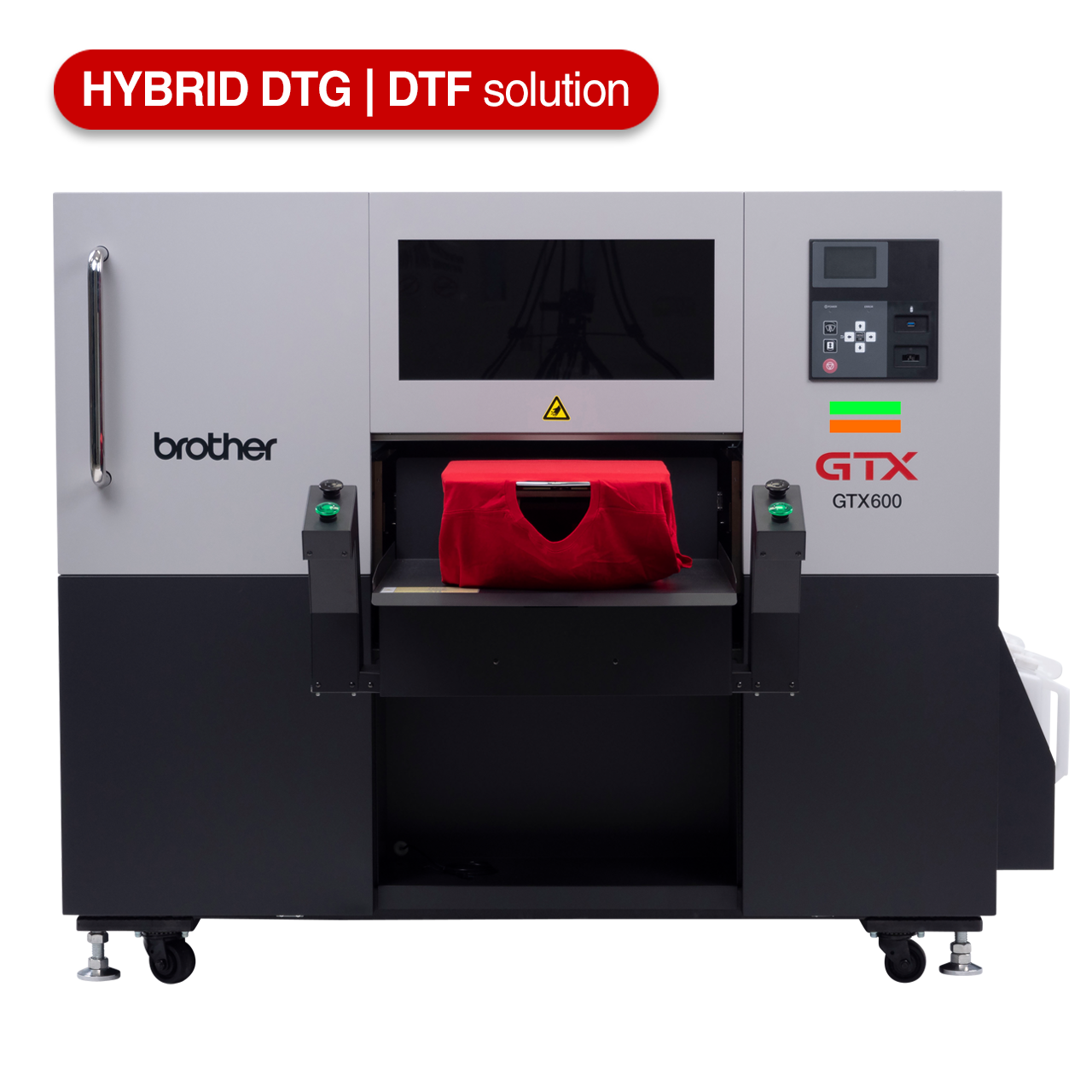

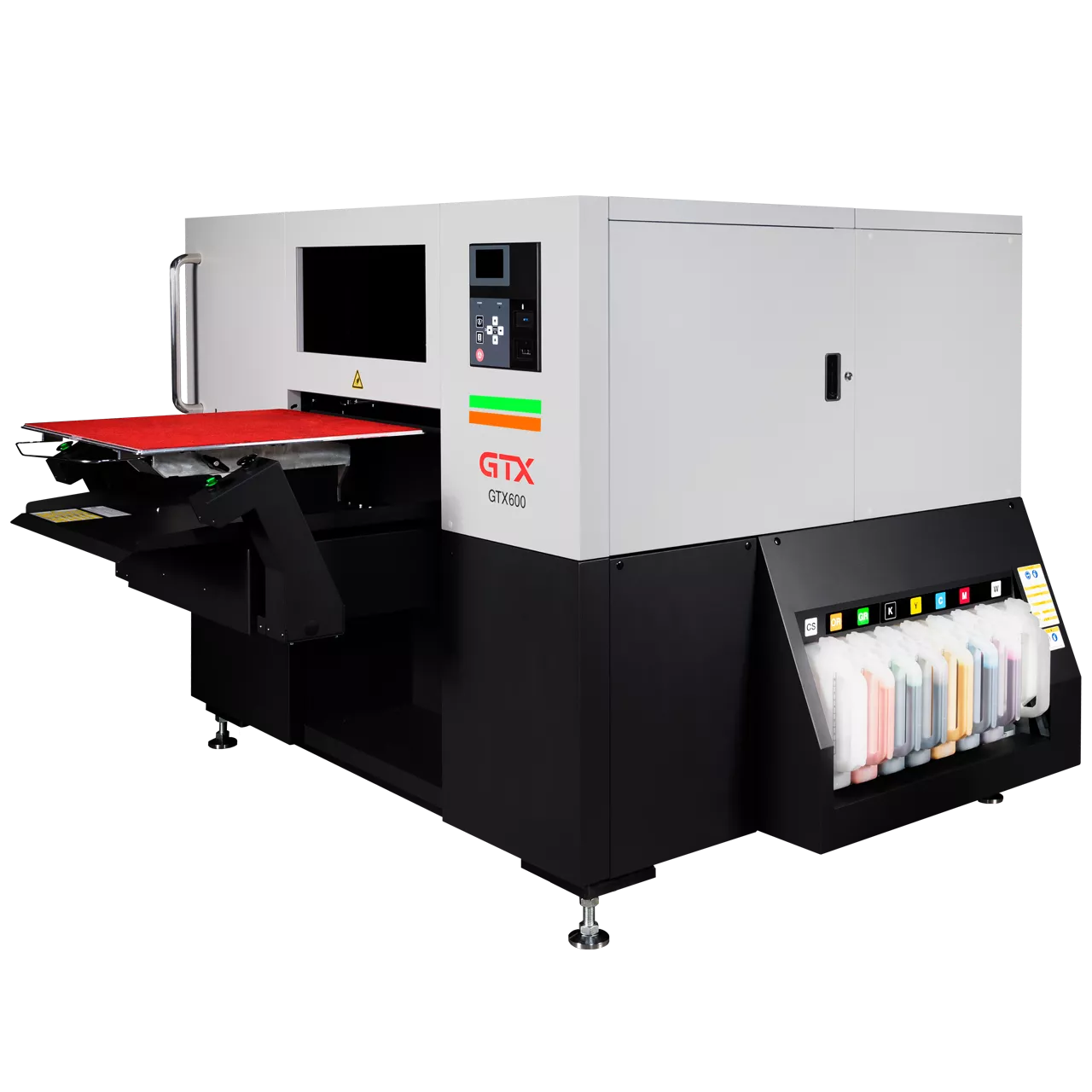

For this purpose we want to introduce the GTX600 & GTX600 Extra Colors to you,
the newest GTX ensures a smooth, highly professional and unique workflow with its
many advantages and should therefore be the new member of you company.
At your side for a better future
Environmental friendliness and sustainability are important issues in many
areas. We at Brother want to do our part by offering solutions that limit the
environmental impact and therefore create a better tomorrow for everyone.
資訊
概述
基本規格
規格
印刷方式
Direct to garment printer
機器呎吋
187cm x 192cm x 146cm (Platen loading) 187cm x 206cm x 146cm (Platen unloading)
機器重量
approx. 680kg (Platen included)
台板呎吋
Maximum Print Size is 61.0cm x 61.0 cm / 24“ x 24“
標配台板呎吋
35,6cm x 40,6cm / 14“ x 16“
墨水類型
Water-based pigment ink
打印頭類型
On demand piezo head with internal fan
打印頭數量
6 print heads
打印範圍
Maximum 1200dpi x 1200dpi
打印模式
Single or double for CMYK. Orange and green added for extra colors. Underbase and highlight for white
數據輸出
Printer driver (USB, File output, LAN)
電源
AC 200V-240V (±10%), 50/60Hz(± 1Hz)
功耗
5A (maximum) (Reference: 2A during printing)
定影條件
Heat press machine can be used at 180°C (356°F) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 160°C (320°F) for three and a half minutes. Time and temperature may vary depending on which manufacturer‘s dryer is used.
前處理
Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer‘s instructions. Pre-treatment is necessary for white ink.
操作系統
OS
PC- Windows 10 (64-bit) and Windows 11 (64-bit) Mac - macOS® Big Sur to macOS® Ventura
接口
LAN, USB Function, USB Host
驅動器進行條件
2GHz CPU (minimum recommendation) 8GB RAM (minimum recommendation)
顯示分辦率
SXGA(1280×1024) (minimum recommendation)
推薦應用程序
Adobe® Photoshop CC Adobe® Illustrator CC CorelDRAW® 2021/2022(Windows)
