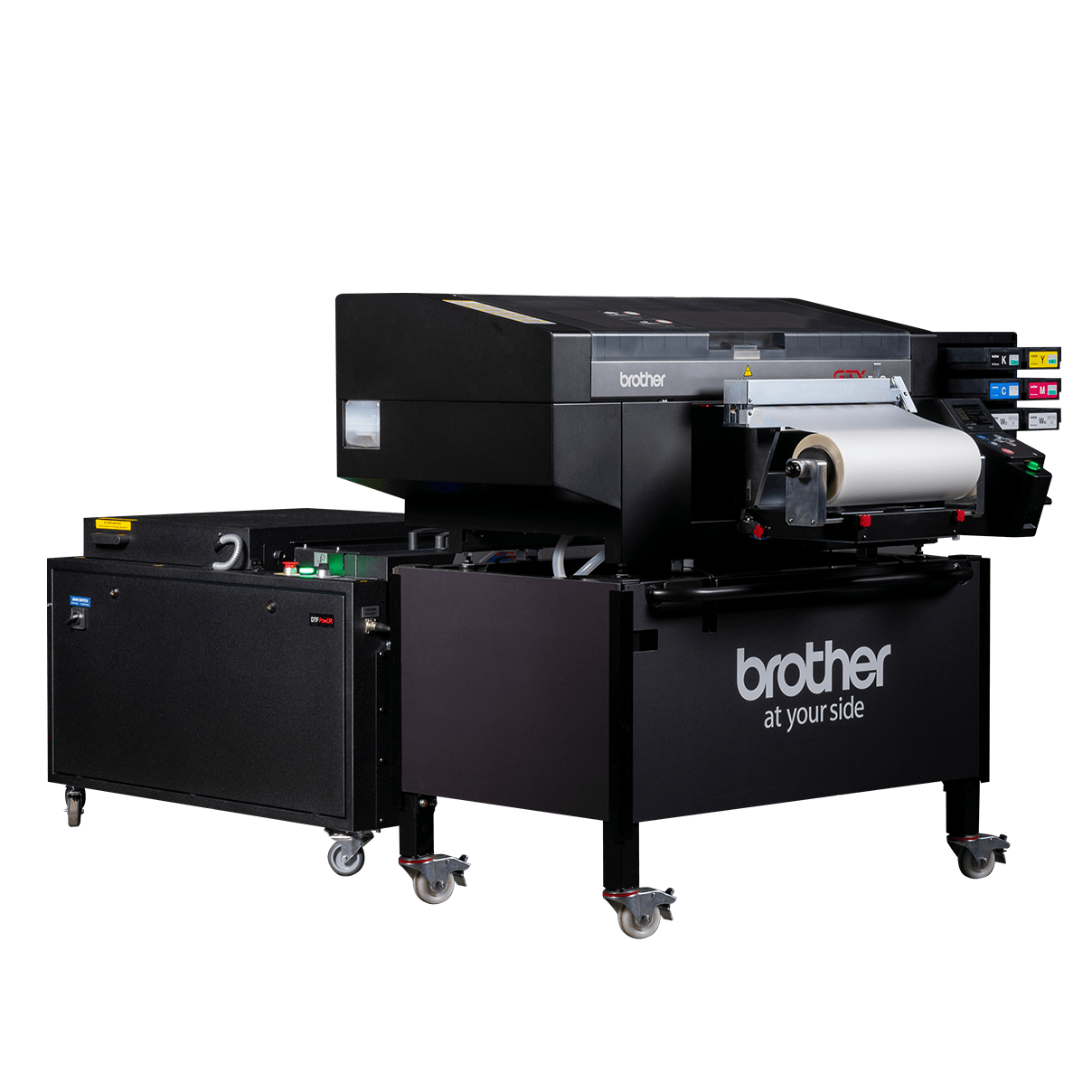

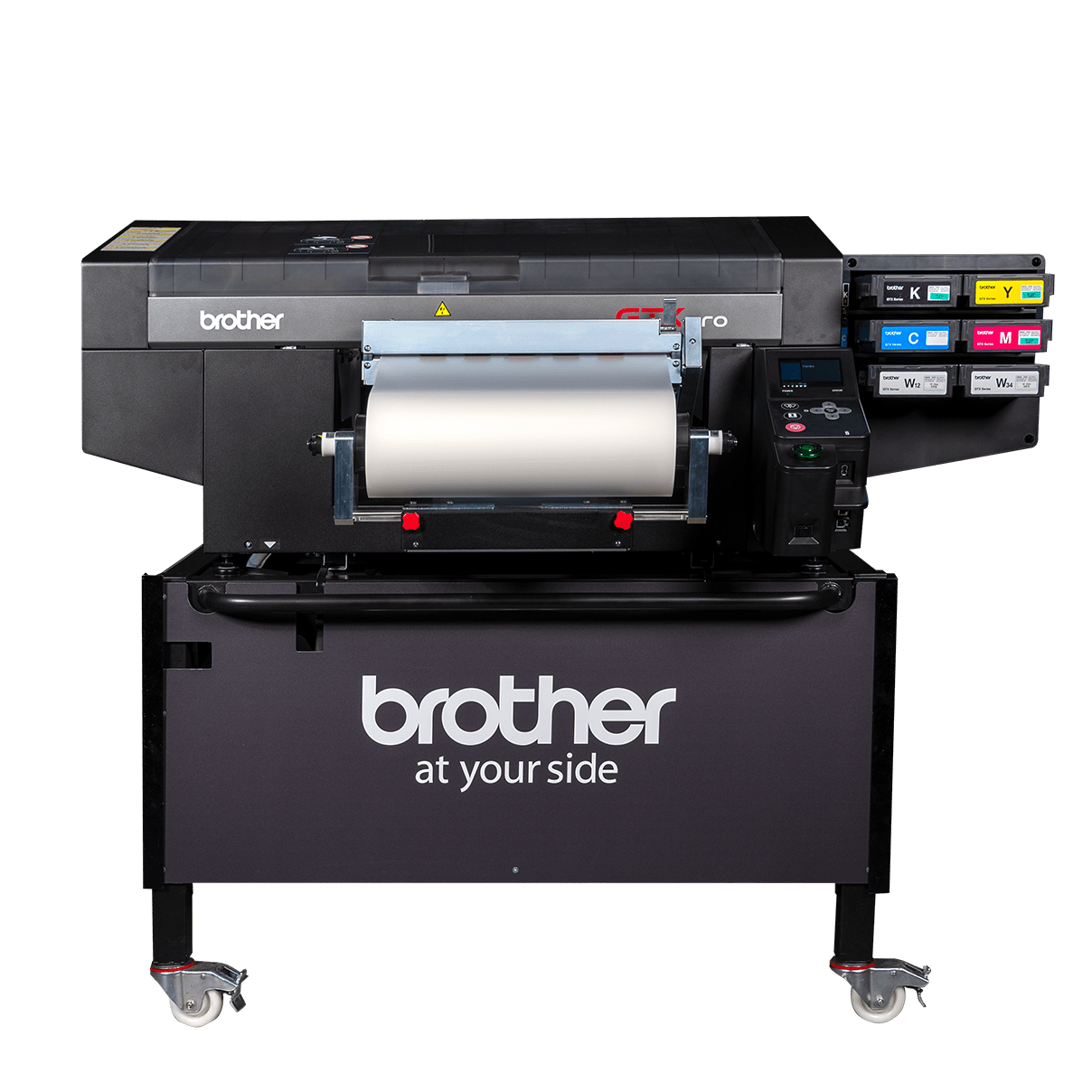

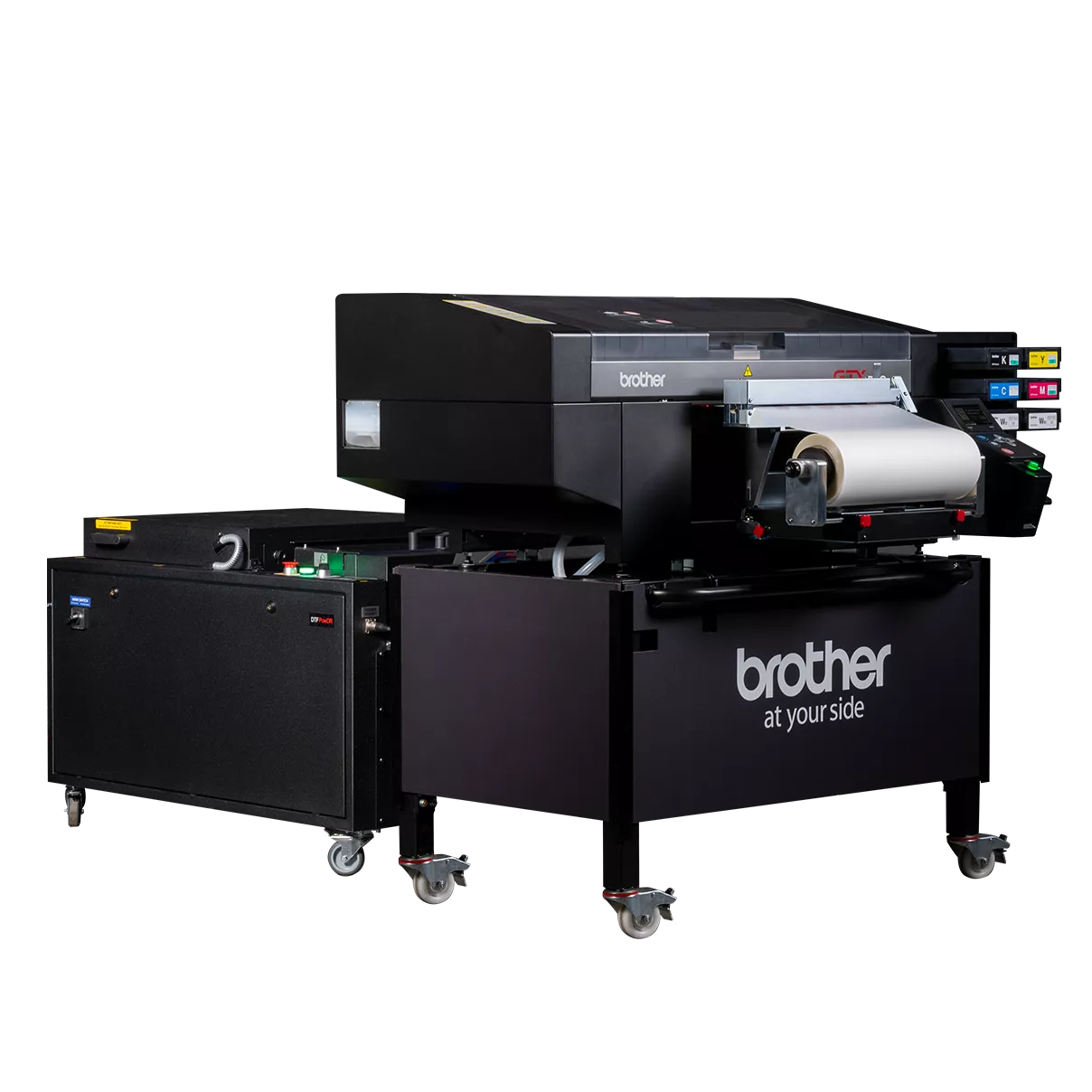

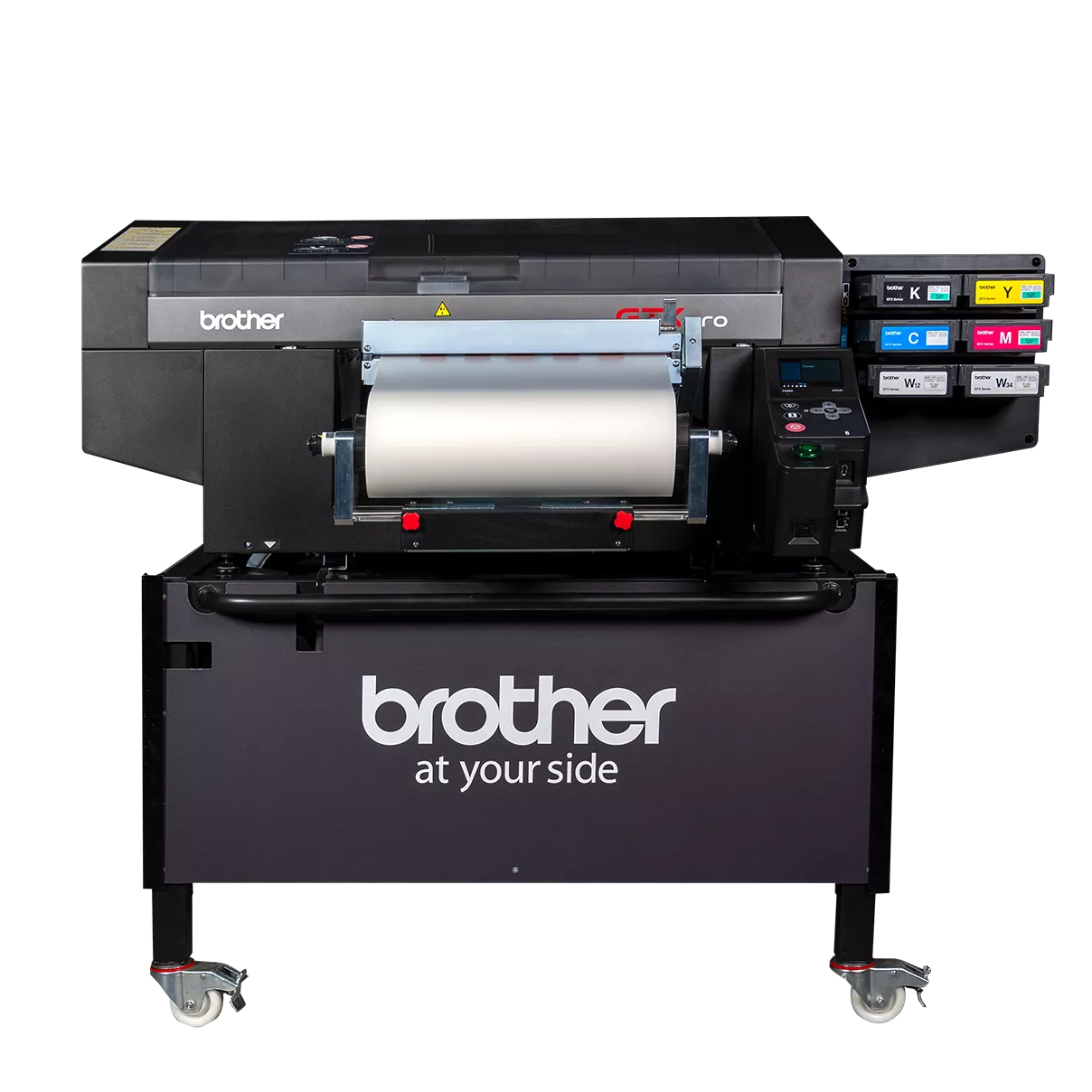

GTX pro DTF R2R Solution
Reliable machine engineered for production
Our well known machines has been in the market for many years and are famous for its reliability and stability.
The 5th generation industrial print heads with internal white ink circulation system and an integrated wet cap system
are keys for allowing for higher productivity with low operator involvement.The two 4 channel piezo on-demand print
heads with internal fans allow for longer print runs without sacrificing print quality.

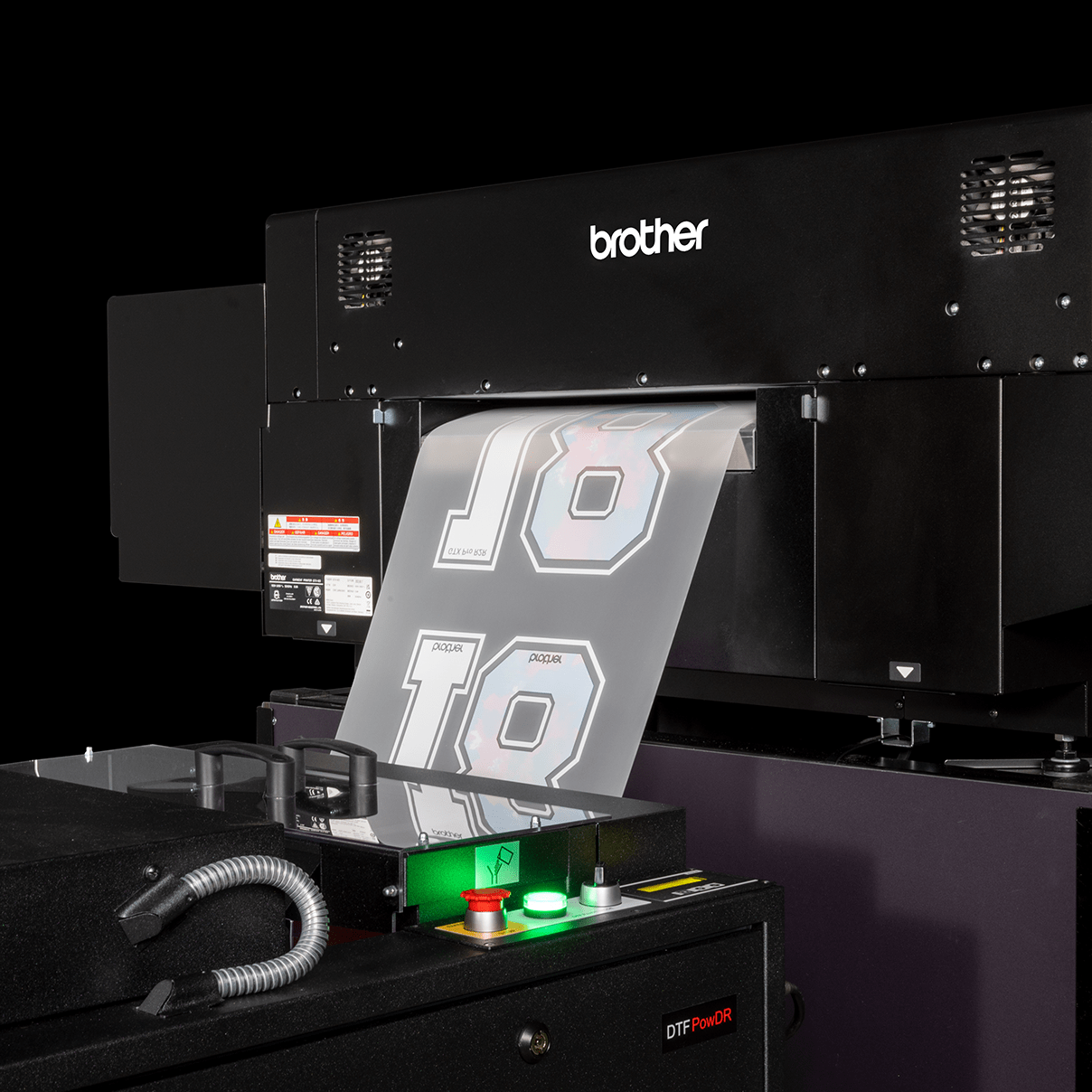

Adapt your buisness easily from DTG to DTF

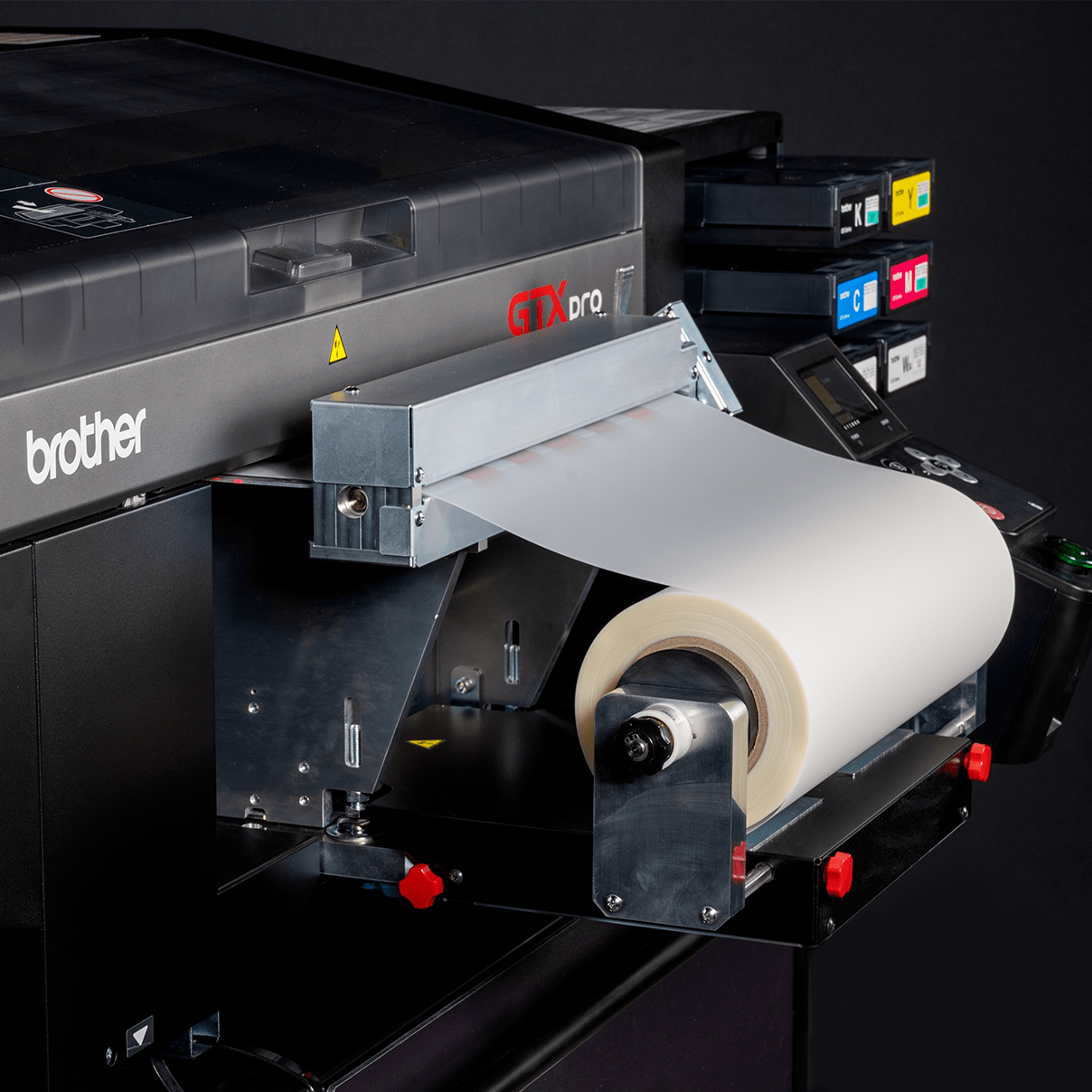

Thanks to the R2R attachment, all printers of the GTXpro series can be easily converted.
This gives our customers the flexibility to choose the printing process they want.
Just contact your dealer for this.
Information
À propos de
Spécifications
Spécifications de base
Méthode d’impression
Impression numérique directe sur vêtement
Taille de la machine
Pro: 1400mm x 1300mm x 550 mm | Bulk 1780mm x 1300mm x 1210mm
Poids de la machine
Pro: Approx: 124kg including Platen | Bulk: Approx 167kg including Platen
Type d’encre
Encres à base d'eau Innobella
Type de tête d'encre
On demand piezo head
Nombre de têtes d’encre
2 print heads/ 8 ink channels
Mode d’impression
CMYK Only, CMYK + White, White Ink only
Sortie de données
Printer driver (USB, File output)
Alimentation
AC 100V-240V, 50/60Hz ± 1HZ
Consommation d’énergie
0.8A (average) (Reference: 0.4A - during circulation)
Logiciel
Os (système d'exploitation)
Windows 8.1 (64bit), Windows 10 (64bit)
Interface
USB 2.0, LAN (10BASE-T, 100BASE-TX, 1000BASE-T), USB Flash Memory (Under 32GB, FAT32 format)
Conditions de fonctionnement du pilote
2GHz CPU (minimum recommendation), 4GB RAM (minimum recommendation)
Résolution d’affichage
XGA(1024x768)(minimum recommendation)
Applications recommandées
Included Software Graphics Lab Basic Film, Digital Factory, Diret to Film editio
